Product Model

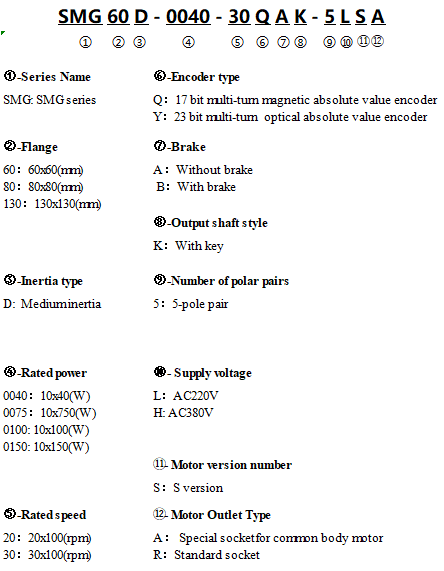

SMG60D-0040-30□■K-5LSA
Add comparison
Cancel comparison
SMG80D-0075-30□■K-5LSA
Add comparison
Cancel comparison
SMG80D-0100-30□■K-5LSA
Add comparison
Cancel comparison
SMG130D-0100-20Q■K-5LSR
Add comparison
Cancel comparison
SMG130D-0150-20Q■K-5LSR
Add comparison
Cancel comparison
Slide to display more
Electrical Specifications
Fold up
Expand
Rated voltage（VAC）
220
220
220
220
220
Rated power Pn(W)
400
750
1000
1000
1500
Rated torque Tn(Nm)
1.27
2.39
3.18
4.77
7.16
Rated speed nN (rpm)
3000
3000
3000
2000
2000
Rated current In(A)
2.5
3.9
5.1
4.26
6.87
Max torque Tm(Nm)
3.81
7.17
9.54
14.31
21.48
Max current Im (A)
8.4
12.6
16.3
13.19
21.45
Electrical time constantτe(ms)
1.94
4.26
4.25
11.5
12.6
Mechanical time constant 1τm(ms)
0.92
0.83
0.74
2.5
2.35
Mechanical time constant 2τm(ms)
1.1(with brake）
0.99(with brake）
0.86(with brake）
2.91(with brake）
2.62(with brake）
EMF constant Ke (V/krpm)
34
35
35
51
50
Torque constant Kt (Nm/A)
0.56
0.58
0.58
0.84
0.83
Rotary inertia 1 Jm (Kg•cm2 )
0.52
1.48
1.97
12.1
17.5
Rotary inertia 2 Jm (Kg•cm2 )
0.62
(with brake）
1.78
(with brake）
2.27
(with brake）
14.1(with brake）
19.5(with brake）
Basic Specifications
Fold up
Expand
Flange
60
80
80
130
130
Inertia
Medium inertia
Medium inertia
Medium inertia
Medium inertia
Medium inertia
Number of polar pairs
5
5
5
5
5
Insulation class
F
F
F
F
F
Max.radial force Fr(N)
245
392
392
490
490
Max.axial force Fa(N)
74
147
147
196
196
Cooling method
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Protection level
IP65
IP65
IP65
IP65
IP65
Environment Of Use
Fold up
Expand
Temperature
﹣20～40℃（no icing）
﹣20～40℃（no icing）
﹣20～40℃（no icing）
﹣20～40℃（no icing）
﹣20～40℃（no icing）
Humidity
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Ambient environment
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Altitude
The rated working altitude is less than 1000 meters above sea level. When the working altitude is higher than 1000 meters, it is necessary to reduce the rated value by 1.5% for every 100 meters of elevation. The maximum working altitude is 2000 meters above sea level.
The rated working altitude is less than 1000 meters above sea level. When the working altitude is higher than 1000 meters, it is necessary to reduce the rated value by 1.5% for every 100 meters of elevation. The maximum working altitude is 2000 meters above sea level.
The rated working altitude is less than 1000 meters above sea level. When the working altitude is higher than 1000 meters, it is necessary to reduce the rated value by 1.5% for every 100 meters of elevation. The maximum working altitude is 2000 meters above sea level.
The rated working altitude is less than 1000 meters above sea level. When the working altitude is higher than 1000 meters, it is necessary to reduce the rated value by 1.5% for every 100 meters of elevation. The maximum working altitude is 2000 meters above sea level.
The rated working altitude is less than 1000 meters above sea level. When the working altitude is higher than 1000 meters, it is necessary to reduce the rated value by 1.5% for every 100 meters of elevation. The maximum working altitude is 2000 meters above sea level.
