Green Series - Enhanced (GH)
Smart Interactive Flagship Built for High-End Manufacturing
GREEN Series Enhanced HMI
The Green Series Enhanced (GH) Industrial Human-Machine Interface stands as an ideal HMI solution for a wide range of automation equipment, featuring military-grade reliability, high-performance configuration, rich interfaces, and user-friendly development experience.Whether for production lines requiring long-term stable operation, harsh industrial sites, or intelligent devices needing networked monitoring, the Green Series Enhanced (GH) delivers reliable and efficient solutions.It helps users improve productivity, reduce maintenance costs, and ensure safe equipment operation, making it a cost-effective preferred HMI product in the field of industrial automation.
Product Model
GH043
Add comparison
Cancel comparison

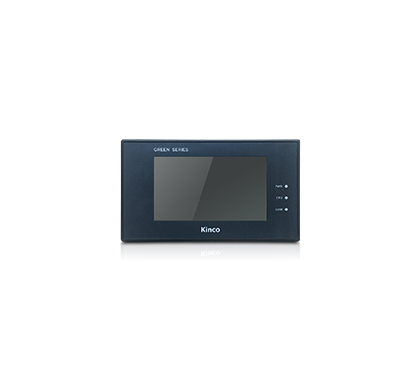

GH043E
Add comparison
Cancel comparison
GH070
Add comparison
Cancel comparison

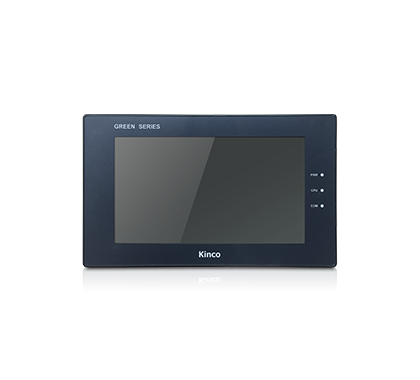

GH070E
Add comparison
Cancel comparison

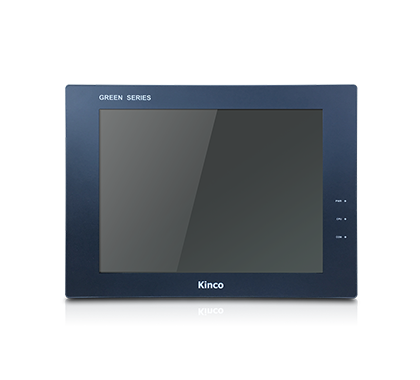

GH104E
Add comparison
Cancel comparison

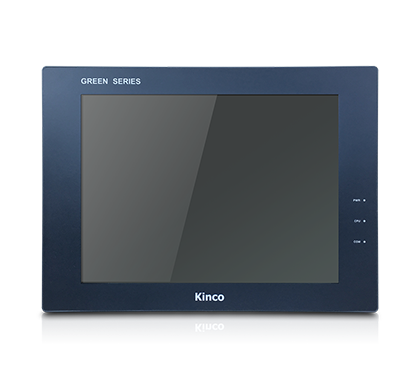

GH150E
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
4.3
4.3
7
7
10.4
15
Display Area (mm)
95.04mm(H)x53.86mm(V)
95.04mm(H)x53.86mm(V)
154.08(H)×85.92(V)
154.08(H)×85.92(V)
211.2(H)×158.4(V)
304.13mm(H)x 228.1mm(V)
Resolution
480*272
480*272
800*480
800*480
800*600
1024*768
Display Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
65535
Viewing Angle
70/70/50/70 (L/R/U/D)
70/70/50/70 (L/R/U/D)
70/70/50/70 (L/R/U/D)
70/70/50/70 (L/R/U/D)
70/70/60/70 (L/R/U/D)
80/80/80/80 (L/R/U/D)
Contrast Ratio
500:1
500:1
500:1
500:1
500:1
500:1
Backlight
LED
LED
LED
LED
LED
LED
Brightness (cd/m²)
300
300
400
400
350
420
Backlight Life
>30000 hours
>30000 hours
>30000 hours
>30000 hours
>30000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
Processor
Fold up
Expand
CPU
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 800MHz
GPU
-
-
-
-
-
-
NPU
-
-
-
-
-
-
Memory
Fold up
Expand
RAM
128M
128M
128M
128M
128M
128M
Flash Memory
256M
256M
256M
256M
256M
256M
Interfaces
Fold up
Expand
USB Host
1
1
1
1
1
1
USB Slave
1
1
1
1
1
1
Ethernet
-
1
-
1
1
1
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS232/RS485/RS422;
COM2:RS232；
COM3:RS485
COM0:RS232/RS485/RS422;
COM1:RS232/RS485/RS422;
COM2:RS232；
COM3:RS485
COM0:RS232/RS485/RS422;
COM1:RS232/RS485/RS422;
COM2:RS232；
COM3:RS485
COM0:RS232/RS485/RS422;
COM1:RS232/RS485/RS422;
COM2:RS232；
COM3:RS485
4G
-
-
-
-
-
-
WIFI
-
-
-
-
-
-
Audio Interface
-
-
-
-
-
-
Other Interfaces
-
1*SD Card
-
1*SD Card
1*SD Card
1*SD Card
HDMI
-
-
-
-
-
-
RFID
-
-
-
-
-
-
Programmable Keys
-
-
-
-
-
-
Selector Switch
-
-
-
-
-
-
Emergenccy Stop
-
-
-
-
-
-
Grip Switch
-
-
-
-
-
-
LED Indicator
-
-
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC10.8V-28V
DC10.8V-28V
DC12V-28V
DC12V-28V
DC10.8V-28V
DC10.8V-28V
Power Consumption
3.5W@24VDC
2W@24VDC
5W@24VDC
5W@24VDC
8W@24VDC
16W@24VDC
Allowable Power Loss Time
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Voltage Endurance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Dimensions (mm)
154x89x60(mm)
154x89x60(mm)
207x125x41(mm)
207x125x41(mm)
310x230x56(mm)
398x298x47(mm)
Panel Cut-out (mm)
146x 81(mm)
146x 81(mm)
194x 113(mm)
194x 113(mm)
299x 219(mm)
383x 283(mm)
Mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Cable
-
-
-
-
-
-
Mounting Accessories
-
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
-20~55°C
-20~55°C
-10~55°C
-10~55°C
-10~55°C
-10~55°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-25~60°C
-25~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Protection
Fold up
Expand
Power Isolation
Yes
Yes
Yes
Yes
Yes
Yes
Serial Port Isolation
-
-
-
Yes
Yes
Yes
PCB Coating
Yes
Yes
Yes
Yes
Yes
Yes
Degree of Protection
IP65
IP65
IP65
IP65
IP65
IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
UL Certificate
-
-
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Remote Maintenance Platform
-
EdgeAccess1.0
-
EdgeAccess1.0
EdgeAccess1.0
EdgeAccess1.0
