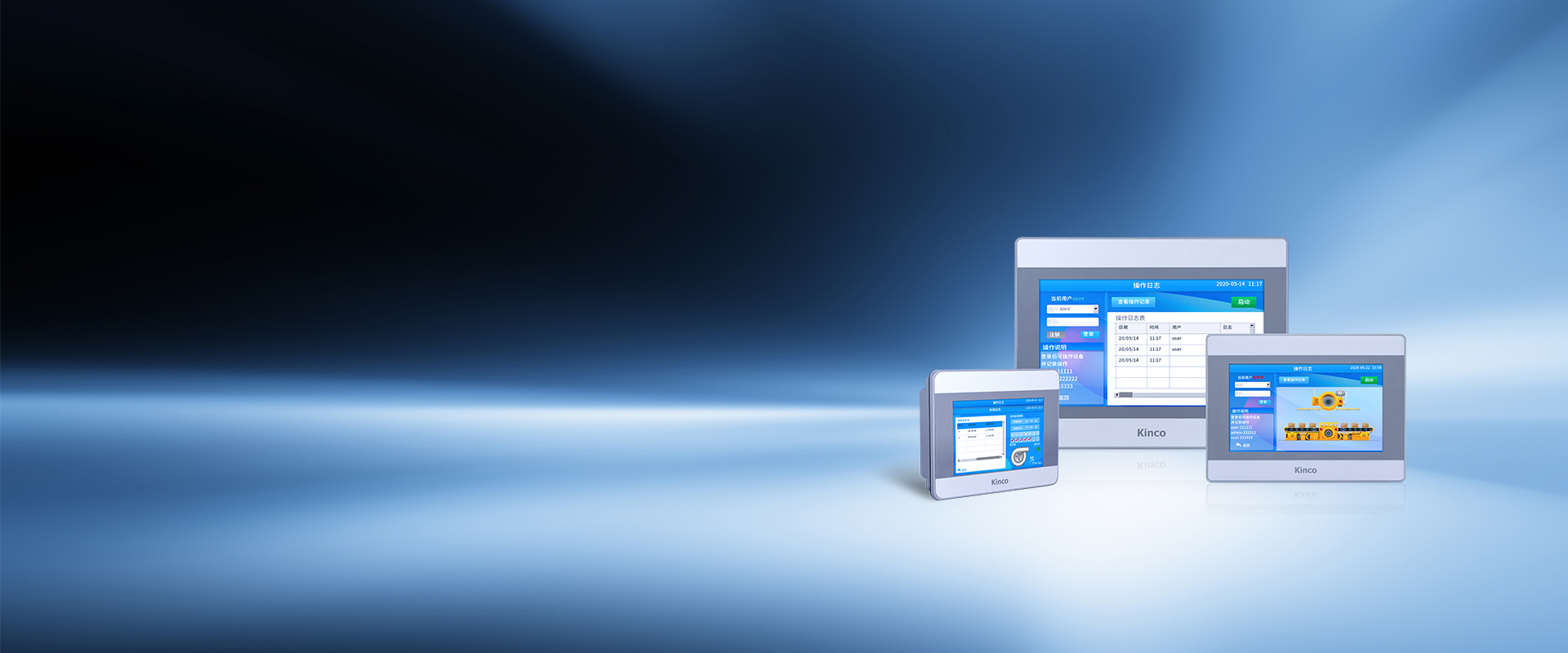

MASS Series IoT-enabled HMI

Kinco MASS Series IoT HMI is a flagship intelligent interactive product built by Kinco for high-end manufacturing, featuring powerful performance and high-definition multi-core processing.

HD Multi-Core, Superior Performance

01

10.1" high-definition display with 256K colors;

02

Main frequency 792MHz, memory 64MB;

03

Snap-in sealed installation design, waterproof and oil-proof;

04

Three serial ports, with COM0 and COM1 both supporting RS485;

05

New generation Kinco DTools configuration software, powerful and easy to use.

Contact Us

Compatible with multiple protocols and databases, supporting remote operation, maintenance and security management.


Provides stable and efficient human-machine interaction solutions for lithium battery, photovoltaic, semiconductor and other industries.

根据图生成效果图 (4).png

高防护，高可靠性

高防护设计适配恶劣工业环境，防尘防潮抗干扰；高可靠性保障长期稳定运行，

应用场景

锂电行业

3C电子

Close




Product Model

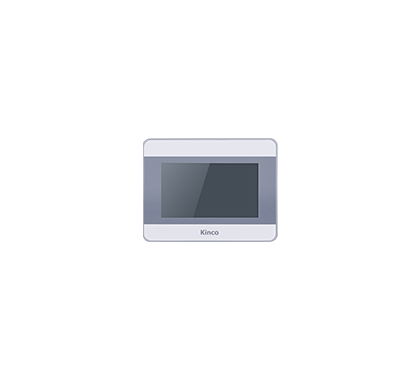

MT043


Add comparison

Cancel comparison

MT043E


Add comparison

Cancel comparison

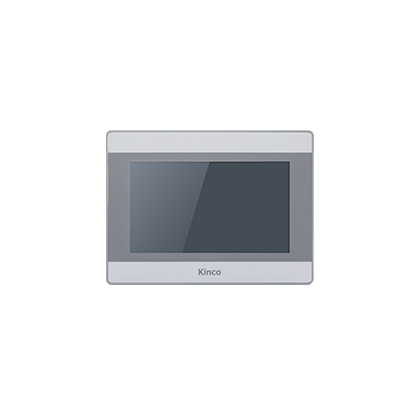

MT070


Add comparison

Cancel comparison

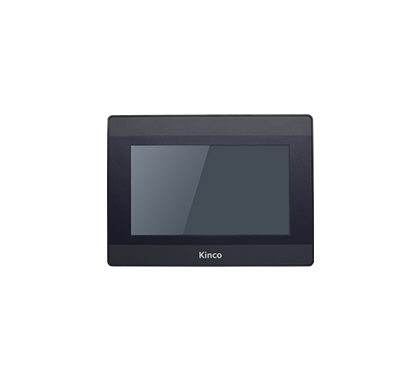

MT070C


Add comparison

Cancel comparison

MT070E


Add comparison

Cancel comparison

MT070EC


Add comparison

Cancel comparison

MT070E-4G


Add comparison

Cancel comparison

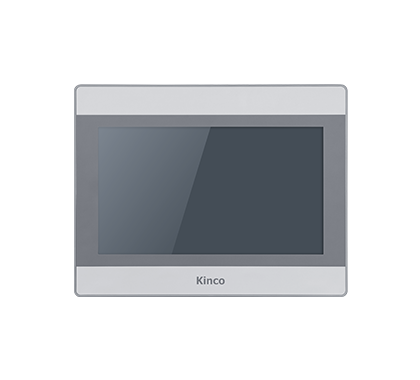

MT100


Add comparison

Cancel comparison

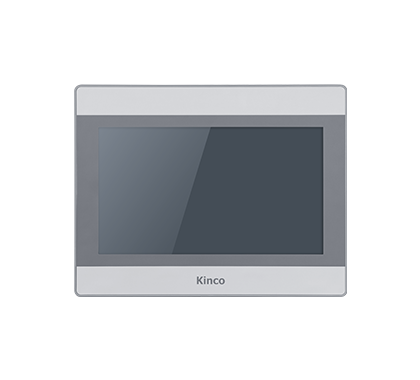

MT100E


Add comparison

Cancel comparison

MT100E-4G


Add comparison

Cancel comparison

Slide to display more

Display

Fold up

Expand

Display Size

4.3

4.3

7

7

7

7

7

10.1

10.1

10.1

Display Area (mm)

95.04mm(H)x53.86mm(V)

95.04mm(H)x53.86mm(V)

154.08(H)×85.92(V)

154.08(H)×85.92(V)

154.08(H)×85.92(V)

154.08(H)×85.92(V)

154.08(H)×85.92(V)

222.72mm(H)x 125.28mm(V)

222.72mm(H)x 125.28mm(V)

222.72mm(H)x 125.28mm(V)

Resolution

480*272

480*272

800*480

800*480

800*480

800*480

800*480

1024*600

1024*600

1024*600

Display Colors

256K

256K

256K

256K

256K

256K

256K

256K

256K

256K

Viewing Angle

70/70/50/70 (L/R/U/D)

70/70/50/70 (L/R/U/D)

70/70/50/70 (L/R/U/D)

70/70/50/70 (L/R/U/D)

70/70/50/70 (L/R/U/D)

70/70/50/70 (L/R/U/D)

70/70/50/70 (L/R/U/D)

85/85/85/85 (L/R/U/D)

85/85/85/85 (L/R/U/D)

85/85/85/85 (L/R/U/D)

Contrast Ratio

500:1

500:1

500:1

500:1

500:1

500:1

500:1

500:1

500:1

500:1

Backlight

LED

LED

LED

LED

LED

LED

LED

LED

LED

LED

Brightness (cd/m²)

450

450

250

250

250

250

250

350

350

350

Backlight Life

50000 hours

50000 hours

50000 hours

50000 hours

50000 hours

50000 hours

50000 hours

>30000 hours

>30000 hours

>30000 hours

Touch Panel

Fold up

Expand

Touch Panel

4-wire precision resistive network

4-wire precision resistive network

4-wire precision resistive network

4-wire precision resistive network

4-wire precision resistive network

4-wire precision resistive network

4-wire precision resistive network

4-wire precision resistive network

4-wire precision resistive network

4-wire precision resistive network

Processor

Fold up

Expand

CPU

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

ARM RISC32Bit 792MHz

GPU

-

-

-

-

-

-

-

-

-

-

NPU

-

-

-

-

-

-

-

-

-

-

Memory

Fold up

Expand

RAM

64M

64M

64M

64M

64M

64M

64M

64M

64M

64M

Flash Memory

128M

128M

128M

128M

128M

128M

128M

128M

128M

128M

Interfaces

Fold up

Expand

USB Host

1

1

1

1

1

1

1

1

1

1

USB Slave

1

1

1

1

1

1

1

1

1

1

Ethernet

-

1

-

-

1

1

1

-

1

1

Communication Port

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232

COM0:RS232/RS485/RS422;
COM2:RS232

COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232

COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232

COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232

COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232

4G

-

-

-

-

-

-

LTE-FDD Band 1/3/5/8,
LTE-TDD Band 34/38/39/40/41
UMTS Band 1/8
GSM Band 3/8

-

-

LTE-FDD Band 1/3/5/8,
LTE-TDD Band 34/38/39/40/41
UMTS Band 1/8
GSM Band 3/8

Wi-Fi

-

-

-

-

-

-

-

-

-

-

Audio Interface

-

-

-

-

-

-

-

-

-

-

Other Interfaces

-

-

-

-

-

-

-

-

-

-

HDMI

-

-

-

-

-

-

-

-

-

-

RFID

-

-

-

-

-

-

-

-

-

-

Programmable Keys

-

-

-

-

-

-

-

-

-

-

Selector Switch

-

-

-

-

-

-

-

-

-

-

Emergenccy Stop

-

-

-

-

-

-

-

-

-

-

Grip Switch

-

-

-

-

-

-

-

-

-

-

LED Indicator

-

-

-

-

-

-

-

-

-

-

Electrical

Fold up

Expand

Input Power

DC10.8V-28V

DC10.8V-28V

DC10.8V-28V

DC10.8V-28V

DC10.8V-28V

DC10.8V-28V

DC10.8V-28V

DC10.8V-28V

DC10.8V-28V

DC10.8V-28V

Power Consumption

2W@24VDC

2W@24VDC

4.2W@24VDC

4.2W@24VDC

4.2W@24VDC

4.2W@24VDC

4.2W@24VDC

7W@24VDC

7W@24VDC

7W@24VDC

Allowable Power Loss Time

<3ms

<3ms

<3ms

<3ms

<3ms

<3ms

<3ms

<3ms

<3ms

<3ms

Insulation Resistance

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

>50 MΩ @ 500V DC

Voltage Endurance

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

500V AC 1minute

Mechanical

Fold up

Expand

Enclosure

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Engineering plastic

Dimensions (mm)

132x102x33(mm)

132x102x33(mm)

204x150x37(mm)

204x150x37(mm)

204x150x37(mm)

204x150x37(mm)

271x191x36(mm)

271x213x38(mm)

271x213x38(mm)

271x213x38(mm)

Panel Cut-out (mm)

119x 93(mm)

119x 93(mm)

192x 138(mm)

192x 138(mm)

192x 138(mm)

192x 138(mm)

260x 179(mm)

260x 202(mm)

260x 202(mm)

260x 202(mm)

Mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Panel mounting

Cable

-

-

-

-

-

-

-

-

-

-

Mounting Accessories

-

-

-

-

-

-

-

-

-

-

Environmental

Fold up

Expand

Operating Temperature

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

0~50°C

Operating Humidity

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

Storage Temperature

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

-20~60°C

Storage Humidity

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

10~90%RH (Non-condensing)

Vibration Resistance

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

10~500Hz, 30m/s², X, Y, Z direction/hour

Cooling

Natural air cooling

Natural air cooling

Natural air cooling

Natural air cooling

Natural air cooling

Natural air cooling

Natural air cooling

Natural air cooling

Natural air cooling

Natural air cooling

Protection

Fold up

Expand

Power Isolation

-

-

-

-

-

-

-

-

-

-

Serial Port Isolation

-

-

-

-

-

-

-

-

-

-

PCB Coating

-

-

-

-

-

-

-

-

-

-

Degree of Protection

IP65

IP65

IP65

IP65

IP65

IP65

IP65

IP65

IP65

IP65

Certifications

Fold up

Expand

CE Certificate

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

EN61000-6-4:2019，EN61000-6-2:2019

UL Certificate

-

-

-

-

-

-

-

-

-

-

Software

Fold up

Expand

Configuration Software

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Kinco DTools

Remote Maintenance Platform

-

EdgeAccess1.0

-

-

EdgeAccess1.0

EdgeAccess1.0

EdgeAccess1.0

-

EdgeAccess1.0

EdgeAccess1.0
