Touch Monitors

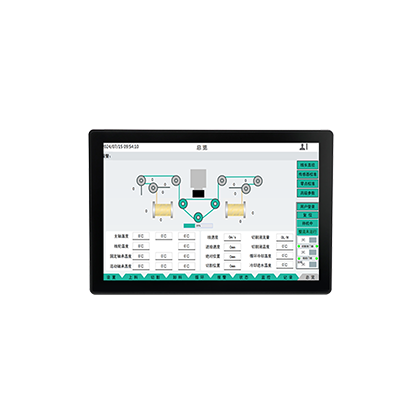

G2100H-CTP Touch Monitors
G2100H-CTP is a high-definition touch display solution designed by Kinco specifically for robot equipment centered on industrial PCs.It is especially suitable for mobile robot applications such as AGV/AMR, forklifts, flower basket trucks, medical transport vehicles and so on, providing industrial-grade quality assurance for real-time interactive display of host computer information. This product adopts a 10.1-inch vertical screen design, supporting dual display inputs of HDMI and VGA as well as a Type-C interface with locking holes.Equipped with plug-and-play capacitive touch technology, it delivers a convenient and efficient human-machine interaction experience, eliminates the hassle of traditional project downloading and updating, and significantly improves development efficiency.
Product Model
G2100H-CTP
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1
Display Area (mm)
217(H)×135(V)
Resolution
1280*800
Display Colors
16.7 million
Viewing Angle
80/80/80/80 (L/R/U/D)
Contrast Ratio
1000:1
Backlight
LED
Brightness (cd/m²)
280
Backlight Life
>30000 hours
Touch Panel
Fold up
Expand
Touch Panel
Capacitive glass touch panel
Processor
Fold up
Expand
CPU
Realtek's single-chip monitor processor
GPU
-
NPU
-
Memory
Fold up
Expand
RAM
-
Flash Memory
-
Interfaces
Fold up
Expand
USB Host
-
USB Slave
-
Ethernet
-
Communication Port
-
4G
-
Wi-Fi
-
Audio Interface
-
Other Interfaces
VGA
HDMI
1
RFID
-
Programmable Keys
-
Selector Switch
-
Emergenccy Stop
-
Grip Switch
-
LED Indicator
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
Power Consumption
15W@24VDC
Allowable Power Loss Time
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
Voltage Endurance
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Metal
Dimensions (mm)
250x169x33(mm)
Panel Cut-out (mm)
192x 138(mm)
Mounting
Panel mounting &
Bracket mounting (75*75)
Cable
-
Mounting Accessories
-
Environmental
Fold up
Expand
Operating Temperature
-10~50°C
Operating Humidity
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling
Natural air cooling
Protection
Fold up
Expand
Power Isolation
-
Serial Port Isolation
-
PCB Coating
Yes
Degree of Protection
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
Software
Fold up
Expand
Configuration Software
-
Remote Maintenance Platform
-
