Green Series 2 - General Type (GL2)
Green Series II Basic (GL2)
Kinco Green Series II Basic (GL2) is a cost-effective upgraded industrial HMI based on the original GL series. Powered by an ARM Cortex-A7 dual-core 1GHz processor, it features 256MB DDR3 + 4GB eMMC, standard Ethernet and serial ports, front IP65 protection and wide-temperature operation.Offered in 4.3", 7", 10.1" sizes with optional WiFi/4G, it is ideal for logistics, packaging, food processing, engineering machinery and electronics manufacturing, providing high-performance, cost-efficient HMI solutions for intelligent and networked equipment.
Related Products
Product Model

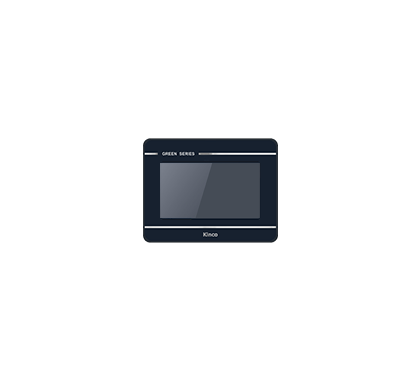

GL2043HE
Add comparison
Cancel comparison

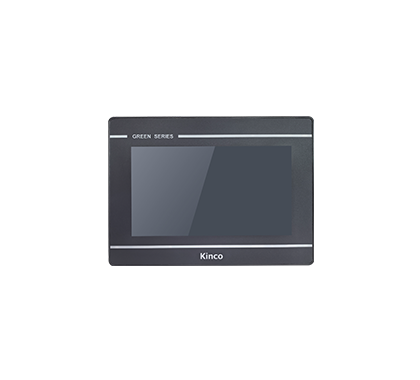

GL2070HE
Add comparison
Cancel comparison
GL2070HE-4G
Add comparison
Cancel comparison
GL2070HE-WIFI
Add comparison
Cancel comparison

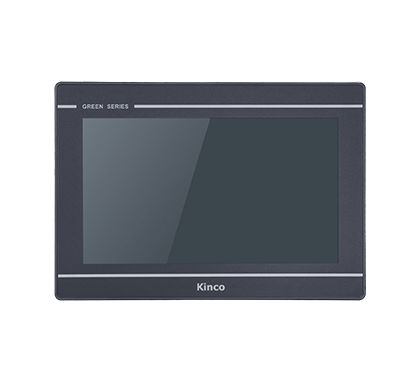

GL2100E
Add comparison
Cancel comparison
GL2100E-4G
Add comparison
Cancel comparison
GL2100E-WIFI
Add comparison
Cancel comparison

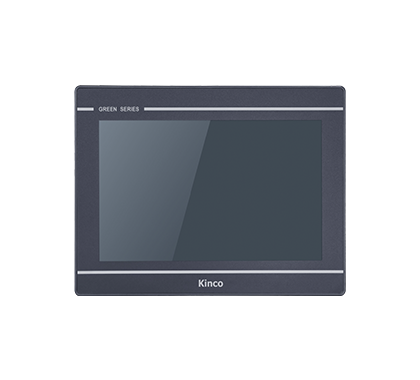

GL2101E
Add comparison
Cancel comparison
GL2101E-4G
Add comparison
Cancel comparison
GL2101E-WIFI
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
4.3
7
7
7
10.1
10.1
10.1
10.1
--
--
Display Area (mm)
95.04mm(H)x54.71mm(V)
154.21(H)×85.92(V)
154.21(H)×85.92(V)
154.21(H)×85.92(V)
222.72mm(H)x 125.28mm(V)
222.72mm(H)x 125.28mm(V)
222.72mm(H)x 125.28mm(V)
222.72mm(H)x 125.28mm(V)
--
--
Resolution
800*480
1024*600
1024*600
1024*600
1024*600
1024*600
1024*600
1024*600
--
--
Display Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.2 million
16.2 million
16.2 million
16.2 million
--
--
Viewing Angle
80/80/80/80(L/R/U/D)
85/85/85/85(L/R/U/D)
85/85/85/85(L/R/U/D)
85/85/85/85(L/R/U/D)
85/85/85/85(L/R/U/D)
85/85/85/85(L/R/U/D)
85/85/85/85(L/R/U/D)
85/85/85/85(L/R/U/D)
--
--
Contrast Ratio
1200:1
800:1
800:1
800:1
500:1
500:1
500:1
500:1
--
--
Backlight
LED
LED
LED
LED
LED
LED
LED
LED
--
--
Brightness (cd/m²)
350
450
450
450
300
300
300
300
--
--
Backlight Life
>30000 hours
>30000 hours
>30000 hours
>30000 hours
>30000 hours
>30000 hours
>30000 hours
>30000 hours
--
--
Touch Panel
Fold up
Expand
Touch Panel
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
--
--
Processor
Fold up
Expand
CPU
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Dual-core ARM 1GHz
--
--
GPU
-
-
-
-
-
-
-
-
--
--
NPU
-
-
-
-
-
-
-
-
--
--
Memory
Fold up
Expand
RAM
256M
256M
256M
256M
256M
256M
256M
256M
--
--
Flash Memory
4G
4G
4G
4G
4G
4G
4G
4G
--
--
Interfaces
Fold up
Expand
USB Host
0
1
1
1
1
1
1
1
--
--
USB Slave
1
1
1
1
1
1
1
1
--
--
Ethernet
1
1
1
1
1
1
1
1
--
--
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
--
--
4G
-
-
LTE-FDD Band 1/3/5/8,
LTE-TDD Band 34/38/39/40/41
-
-
LTE-FDD Band 1/3/5/8,
LTE-TDD Band 34/38/39/40/41
-
-
--
--
Wi-Fi
-
-
-
IEE802.11 b/g/n
-
-
IEE802.11 b/g/n
-
--
--
Audio Interface
-
-
-
-
-
-
-
-
--
--
Other Interfaces
-
-
-
-
-
-
-
-
--
--
HDMI
-
-
-
-
-
-
-
-
--
--
RFID
-
-
-
-
-
-
-
-
--
--
Programmable Keys
-
-
-
-
-
-
-
-
--
--
Selector Switch
-
-
-
-
-
-
-
-
--
--
Emergenccy Stop
-
-
-
-
-
-
-
-
--
--
Grip Switch
-
-
-
-
-
-
-
-
--
--
LED Indicator
-
-
-
-
-
-
-
-
--
--
Electrical
Fold up
Expand
Input Power
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
DC10.8V-28V
--
--
Power Consumption
2W@24VDC
4.2W@24VDC
4.2W@24VDC
4.2W@24VDC
6W@24VDC
6W@24VDC
6W@24VDC
6W@24VDC
--
--
Allowable Power Loss Time
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
--
--
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
--
--
Voltage Endurance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
--
--
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
--
--
Dimensions (mm)
132x102x33(mm)
204x150x37(mm)
204x150x37(mm)
204x150x37(mm)
271x191x36(mm)
271x191x36(mm)
271x191x36(mm)
271x213x38(mm)
--
--
Panel Cut-out (mm)
119x 93(mm)
192x 138(mm)
192x 138(mm)
192x 138(mm)
260x 179(mm)
260x 179(mm)
260x 179(mm)
260x 202(mm)
--
--
Mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
--
--
Cable
-
-
-
-
-
-
-
-
--
--
Mounting Accessories
-
-
-
-
-
-
-
-
--
--
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
--
--
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
--
--
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
--
--
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
--
--
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
--
--
Cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
--
--
Protection
Fold up
Expand
Power Isolation
-
-
-
-
-
-
-
-
--
--
Serial Port Isolation
-
-
-
-
-
-
-
-
--
--
PCB Coating
-
-
-
-
-
-
-
-
--
--
Degree of Protection
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
--
--
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
--
--
UL Certificate
-
-
-
-
-
-
-
-
--
--
Software
Fold up
Expand
Configuration Software
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
--
--
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
--
--
