FM Series Stepper Driver
Supports Modbus/Canopen/EtherCAT bus control protocol
FM Series Stepper Driver
The FM series bus-type stepper driver based on servo technology platform ,Supports rich origin control methods、analog input control、 CANopen、Modbus 、RS232 communication functions. The new interface design is smaller in size and better in performance. Suitable for electronic device manufacturing, special machine tools, industrial robots, inkjet printing equipment, textile and clothing equipment, logistics equipment, medical equipment AGV、 Packaging equipment and other industries.

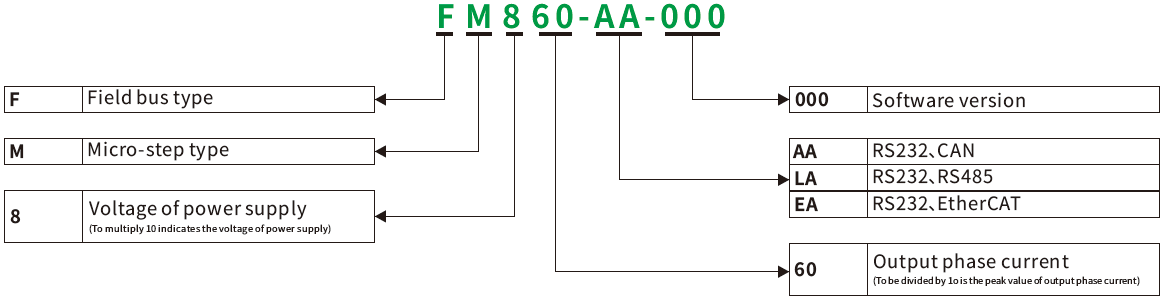

Product Model

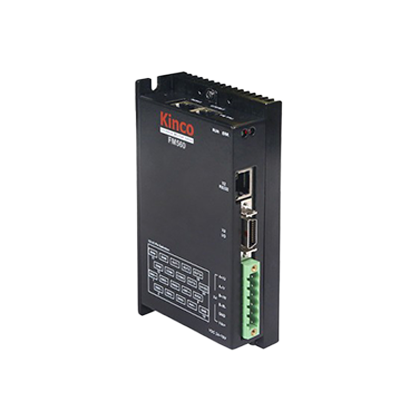

FM560-EA-000
Add comparison
Cancel comparison

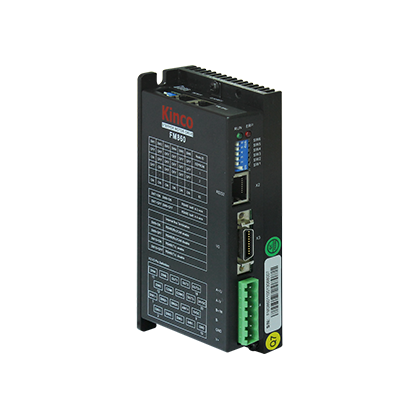

FM860-LA-000
Add comparison
Cancel comparison
FM860-AA-000
Add comparison
Cancel comparison

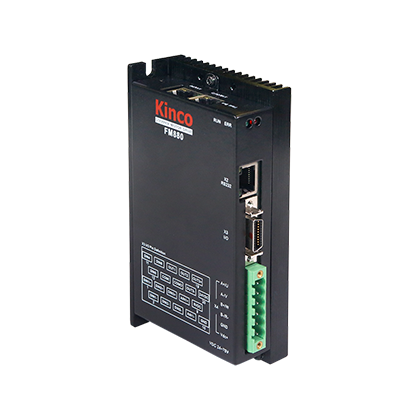

FM880-EA-000
Add comparison
Cancel comparison
Slide to display more
Basic Specifications
Fold up
Expand
Input voltage
24VDC～50VDC
24VDC～70VDC
24VDC～70VDC
24VDC～70VDC
Output current
0.1～6A
0.15～8A （Peak）
0.15～8A （Peak）
0.1～10A
Micro step
KincoStep setting of upper computer software
KincoStep setting of upper computer software
KincoStep setting of upper computer software
KincoStep setting of upper computer software
Adaptive motor
42/57/86 series 2-phase hybrid stepper motor
42/57/86 series 2-phase or57/85 series
3-phase hybrid stepper motor
42/57/86 series 2-phase or57/85 series
3-phase hybrid stepper motor
86 series 2-phase or57/85 series
3-phase hybrid stepper motor
ControlMethod
EtherCAT bus protocol control,l0 control,analog
controlPulse control: pulse + direction
(PLS+DlR, positive and negative pulse (CW/CCW), A+B phase
Modbus bus protocol control,l0 control,analog
controlPulse control: pulse + direction
(PLS+DlR, positive and negative pulse (CW/CCW), A+B phase
CANopen bus protocol control,l0 control,analog
controlPulse control: pulse + direction
(PLS+DlR, positive and negative pulse (CW/CCW), A+B phase
EtherCAT bus protocol control,l0 control,analog
controlPulse control: pulse + direction
(PLS+DlR, positive and negative pulse (CW/CCW), A+B phase
Cooling method
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Weight (net weight)
0.363Kg
0.36Kg
0.36Kg
0.363Kg
Dimensions
134.5x 75.5 x 34mm
134.5x 75.5 x 34mm
134.5x 75.5 x 34mm
134.5x 75.5 x 34mm
Ingress protection
IP20
IP20
IP20
IP20
Alarm Voltage Point
Fold up
Expand
Over-voltage protection
>85VDC
>85VDC
>85VDC
>85VDC
Under-voltage protection
<15VDC
<15VDC
<15VDC
<15VDC
Environment Of Use
Fold up
Expand
Operation environment
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Operation humidity
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
Operation temperature
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
Storage temperature
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
