MK Series Integrated Unit,IoT Model
Product Model

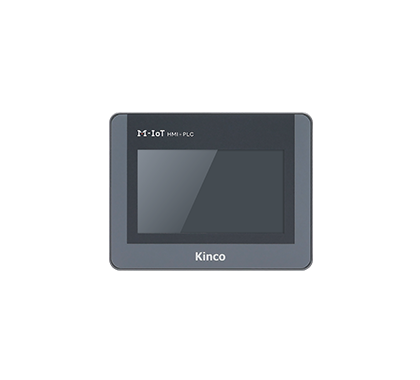

MK070E-33DT
Add comparison
Cancel comparison
MK070E-32DX
Add comparison
Cancel comparison

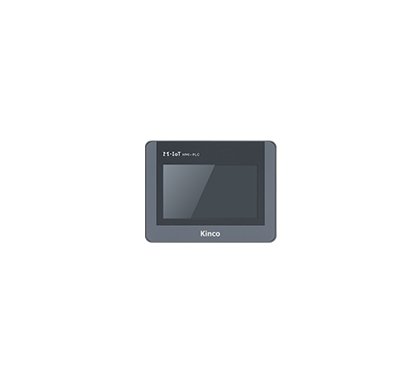

MK043E-20DT
Add comparison
Cancel comparison
MK070E-27DRT
Add comparison
Cancel comparison
MK043E-20DTC
Add comparison
Cancel comparison
MK043E-27DT
Add comparison
Cancel comparison
Slide to display more
PLC-I/OSpecifications
Fold up
Expand
Digital Input Channels
16 channels,supports NPN/PNP
16 channels,supports NPN/PNP
9 channels,supports NPN/PNP
12 channels,supports NPN/PNP
9 channels,supports NPN/PNP
10 channels,supports NPN/PNP
Digital Output Channels
14 Channels,Transistor-Type,supports PNP
4 Transistor-Type Channels (PNP)+12 Relay-Type Channels
9 Channels,Transistor-Type,supports PNP
12 Channels,Relay-Type
9 Channels,Transistor-Type,supports PNP
10 Channels,Transistor-Type,supports PNP
Configurable Digital I/O Channels
/
/
/
/
/
4 Transistor-Type Channels,Configurable as Input or Output via Wiring,Mixable
Input Voltage
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
Input Current
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
Maximum Input Voltage for Logic "0"
5V@0.7mA
5V@0.7mA
5V@0.7mA
5V@0.7mA
5V@0.7mA
5V@0.7mA
Minimum Input Voltage for Logic "1"
11V@2.5mA
11V@2.5mA
11V@2.5mA
11V@2.5mA
11V@2.5mA
11V@2.5mA
Input Delay Time
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Isolation Method (Input)
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Output Voltage (Transistor Type)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
/
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
Output Current per Channel (Transistor Type)
Rated current:200mA@24V DC
Rated current:200mA@24V DC
Rated current:200mA@24V DC
/
Rated current:200mA@24V DC
Rated current:200mA@24V DC
Inrush Current per Channel (Transistor Output)
1A,duration≤1s
1A,duration≤1s
1A,duration≤1s
/
1A,duration≤1s
1A,duration≤1s
Output Leakage Current (Transistor Type)
Maximum 0.5㎂
Maximum 0.5㎂
Maximum 0.5㎂
/
Maximum 0.5㎂
Maximum 0.5㎂
Output Impedance (Transistor Type)
Maximum 0.2Ω
Maximum 0.2Ω
Maximum 0.2Ω
/
Maximum 0.2Ω
Maximum 0.2Ω
Output Delay Time (Transistor Type)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
/
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Protection Functions (Transistor Output Type)
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
/
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Isolation Method (Transistor Output Type)
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
/
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Allowable Load Voltage (Relay Type)
/
DC 30V/AC 250V
/
DC 30V/AC 250V
/
/
Allowable Load Current (Relay Type)
/
2A（DC 30V/AC 250V）
/
2A（DC 30V/AC 250V）
/
/
Output Current per Group (Relay Type)
/
Maximum 6A
/
最大6A
/
/
Output Delay Time (Relay Type)
/
Turn-on delay≤8ms
Turn-off delay≤5ms
/
Turn-on delay≤8ms
Turn-off delay≤5ms
/
/
Expected Relay Contact Life
/
Mechanical Life (No Load):20,000,000 Operations(1,200 Operations/Min.)
Electrical Life (Rated Load):100,000 Operations(6 Operations/Min.)
/
Mechanical Life (No Load):20,000,000 Operations(1,200 Operations/Min.)
Electrical Life (Rated Load):100,000 Operations(6 Operations/Min.)
/
/
Output Isolation Characteristics (Relay Type)
/
Relay Isolation
Coil-to-Contact Isolation Voltage:2000 Vrms
/
Relay Isolation
Coil-to-Contact Isolation Voltage:2000 Vrms
/
/
Analog Input Channels
2 Channels
/
2 Channels
3 Channels
2 Channels
2 Channels
Analog Output Channels
1 Channel
/
/
/
/
1 Channel
Sensor Type
/
/
/
Supports Pt100 RTD
Temperature Measurement Range:-40℃ to 240℃
Supports Type J,Type K,Type E and Type T Thermocouples
/
Analog Resolution
12 Bits
/
12 Bits
12 Bits
12 Bits
12 Bits
Analog Signal Type
4~mA、1~5V、0~20mA、 0~10V
/
0-10V
/
/
4~mA、1~5V、0~20mA、 0~10V
Measurement Accuracy
0.3% F.S.
/
0.3% F.S.
0.3% F.S.
0.3% F.S.
0.3% F.S.
Output Signal Accuracy
0.3% F.S.
/
/
/
/
0.3% F.S.
Analog Conversion Rate (per Channel)
AI:≈200Times/s
AO:≈300Times/s
/
AI:≈200Times/s
AI:≈200Times/s
AI:≈200Times/s
AI:≈200Times/s
AO:≈300Times/s
Analog Input Impedance
Current Mode:≤250Ω
Voltage Mode:>4MΩ
/
Current Mode:≤250Ω
Voltage Mode:>4MΩ
/
/
Current Mode:≤250Ω
Voltage Mode:>4MΩ
Analog Common Mode Voltage Rejection
(Signal Voltage+Common Mode Voltage)≤15V
/
(Signal Voltage+Common Mode Voltage)≤15V;
Channel Enters Protection State When Exceeded
/
/
(Signal Voltage+Common Mode Voltage)≤15V;
Channel Enters Protection State When Exceeded
Analog External Load
Current Mode:≤500Ω
Voltage Mode:>1kΩ
/
/
/
/
Current Mode:≤500Ω
Voltage Mode:>1kΩ
Expansion Module
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
HSC Channels
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
High-Speed Pulse Output Channels
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
None
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
PLC-Program Storage and RTC
Fold up
Expand
Program Memory
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Data Memory
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
Timer
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Counter
256 Units
256 Units
256 Units
256 Units
256 Units
256 Units
Timed interrupt
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
Data Backup
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
Data retention
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
RTC
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
PLC-Communication Port
Fold up
Expand
Programming Interface
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
CAN
1 Port
Supports Kinco Motion Control Functions and CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports CANopen Master Function and CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports Kinco Motion Control Functions and CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
RS485
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
Electrical Specifications
Fold up
Expand
Rated Input Voltage
DC 24V
DC 24V
DC 24V
DC 24V
DC 24V
DC 24V
Supply Voltage Range
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
Maximum Power
≈10W
≈10W
≈8W
≈10W
≈10W
≈8W
HMI-Display Specifications
Fold up
Expand
Touch Screen
7”TFT
7”TFT
4.3”TFT
7”TFT
4.3”TFT
4.3”TFT
Outer Dimensions
204*150*33.9mm
204*150*33.9mm
132*102*31.5
204*150*33.9mm
132*102*31.5mm
132*102*31.5mm
Installation Dimensions
192*138mm
192*138mm
119*93
192*138mm
119*93mm
119*93mm
Resolution
800*480
800*480
480*272
800*480
480*272
480*272
Display Color
256k Colors
256k Colors
256k Colors
256k Colors
256k Colors
256k Colors
Brightness
250cd/m²
250cd/m²
400cd/m²
250cd/m²
400cd/m²
400cd/m²
Backlight
LED
LED
LED
LED
LED
LED
Touch Panel
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
Backlight life
50000h
50000h
50000h
50000h
50000h
50000h
CPU
700MHz RISC
700MHz RISC
700MHz RISC
700MHz RISC
700MHz RISC
700MHz RISC
Serial Port
None
None
None
None
None
1*RS232(COM2)
Ethernet
10M/100M Adaptive
10M/100M Adaptive
10M/100M Adaptive
10M/100M Adaptive
10M/100M Adaptive
10M/100M Adaptive
Storage
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
Recipe Storage
256kB+RTC
256kB+RTC
256kB+RTC
256kB+RTC
256kB+RTC
256kB+RTC
Expansion Storage
1*USB HOST(USB-A)
1*USB HOST(USB-A)
1*USB HOST(USB-A)
1*USB HOST(USB-A)
1*USB HOST(USB-A)
1*USB HOST(USB-A)
Program Download
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
Printer Port
USB SLAVE(USB-B)
USB SLAVE(USB-B)
USB SLAVE(USB-B)
USB SLAVE(USB-B)
USB SLAVE(USB-B)
USB SLAVE(USB-B)
Compatible Software
Fold up
Expand
HMI-Configuration Software
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
PLC-Programming Software
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
Transportation and Storage
Fold up
Expand
Climatic Conditions
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Mechanical Conditions
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Operating Conditions
Fold up
Expand
Climatic Conditions
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Mechanical Conditions
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Electromagnetic Compatibility(EMC)
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Product Protection
Fold up
Expand
Protection Level
IP20
IP20
IP20
IP20
IP20
IP20
Product Certification
Fold up
Expand
Certification
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
