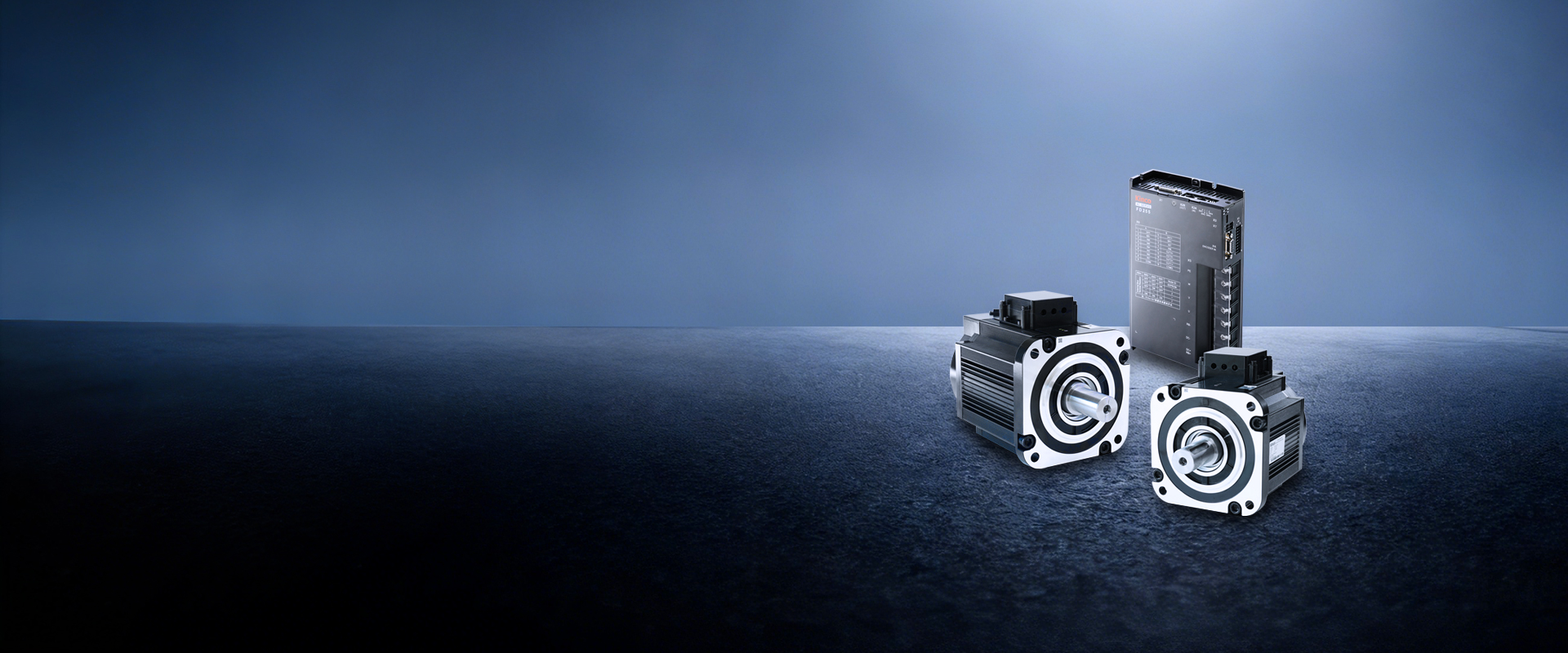

SMK Series DC Servo Motor (DC96V)
SMK系列DC96V直流伺服电机
96V系统电流相对较小，在传输相同功率时，线路电阻产生的热量较少，效率更高，电机发热问题减轻，有助于延长电机和相关设备寿命，提高系统稳定性。 96V伺服电机在相同电流下能传输更高功率，更适合重载AGV的大功率需求，可提供更强动力，支持AGV搬运更重货物或在复杂工况下运行。

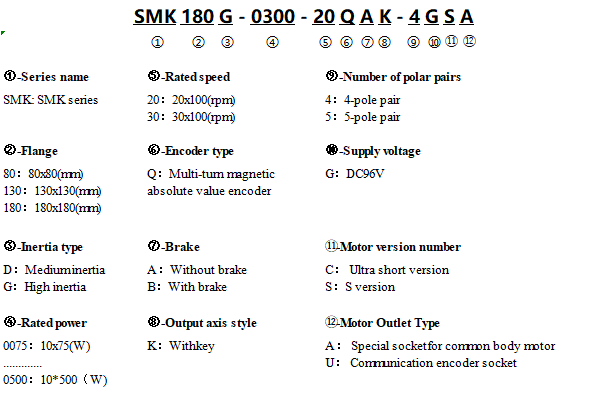

Product Model
SMK80D-0075-30Q■K-5GCU
Add comparison
Cancel comparison
SMK80D-0100-30Q■K-5GCU
Add comparison
Cancel comparison
SMK130G-0150-30Q■K-5GSU
Add comparison
Cancel comparison
SMK130G-0300-30Q■K-5GSU
Add comparison
Cancel comparison
SMK180G-0300-20Q■K-4GSA
Add comparison
Cancel comparison
SMK180G-0400-20Q■K-4GSA
Add comparison
Cancel comparison
SMK180G-0500-20Q■K-4GSA
Add comparison
Cancel comparison
Slide to display more
Electrical Specifications
Fold up
Expand
Rated line voltage U（V）
96
96
--
--
--
--
--
Rated power Pn(W)
750
1000
--
--
--
--
--
Rated torque Tn(Nm)
2.39
3.18
--
--
--
--
--
Rated speed Nn (rpm)
3000
3000
--
--
--
--
--
Rated current In(A)
9.6
12.4
--
--
--
--
--
MAX torqueTm(Nm)
7.17
7.95
--
--
--
--
--
MAX current Im（A）
32.5
36
--
--
--
--
--
Electrical time constantτe(ms)
3.17
4.2
--
--
--
--
--
Mechanical time constant 1τm(ms)
0.92
0.8
--
--
--
--
--
Mechanical time constant 2τm(ms)
1.02(with brake)
0.87(with brake)
--
--
--
--
--
EMF constant Ke (V/krpm)
17.3
17.5
--
--
--
--
--
Torque constant Kt (Nm/A)
0.286
0.29
--
--
--
--
--
Rotor moment of inertia 1 Jm(Kg•cm2)
1.45
2.04
--
--
--
--
--
Rotor moment of inertia 2 Jm(Kg•cm2)
1.61
(with brake)
2.2
(with brake)
--
--
--
--
--
Basic Specifications
Fold up
Expand
Flange
80
80
--
--
--
--
--
Inertia
Medium inertia
Medium inertia
--
--
--
--
--
number of pole pairs
5
5
--
--
--
--
--
Insulation class
F
F
--
--
--
--
--
Max radial force Fr(N)
270
270
--
--
--
--
--
Max axial force Fa(N)
90
90
--
--
--
--
--
Cooling method
Totally enclosed, self-cooling
Totally enclosed, self-cooling
--
--
--
--
--
Protection level
IP54
IP54
--
--
--
--
--
Environment Of Use
Fold up
Expand
Temperature
﹣20～40℃
﹣20～40℃
--
--
--
--
--
Humidity
Below 90% RH (no condensation)
Below 90% RH (no condensation)
--
--
--
--
--
Ambient environment
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
--
--
--
--
--
Altitude
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
--
--
--
--
--
