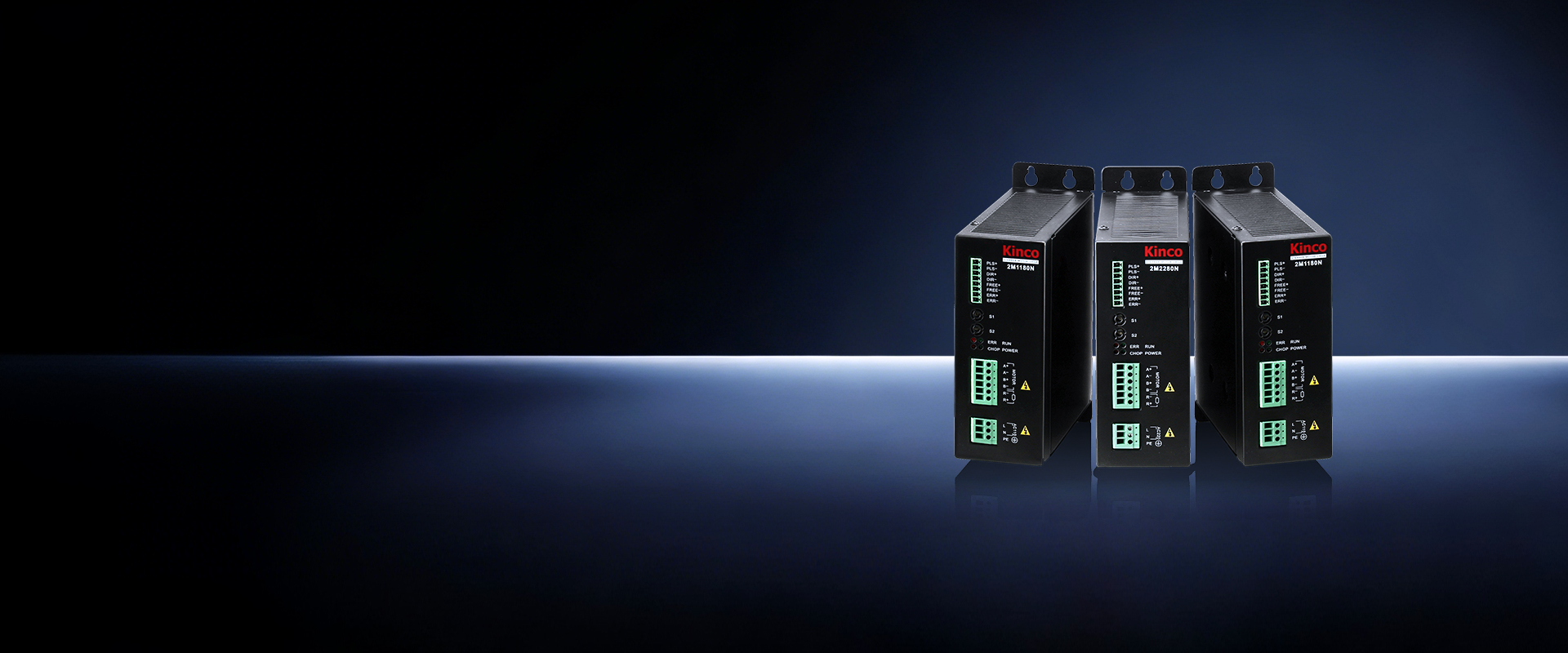

M Series Stepper Driver
M Series Stepper Driver
M series traditional version stepper driver, stable quality, used to drive any two-phase or three-phase hybrid stepper motor with current less than 8.0A.
Product Model

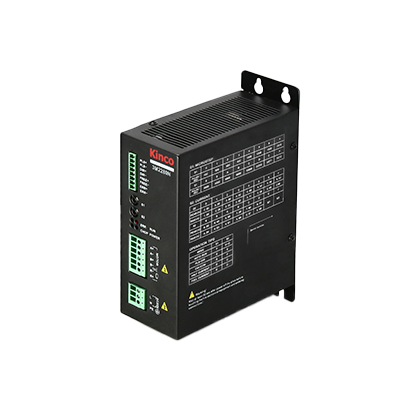

2M1180N
Add comparison
Cancel comparison
2M2280N
Add comparison
Cancel comparison
3M2280N
Add comparison
Cancel comparison

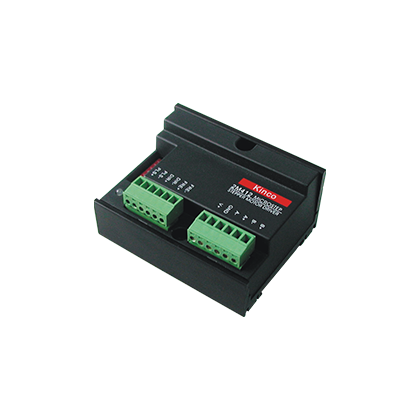

2M412
Add comparison
Cancel comparison

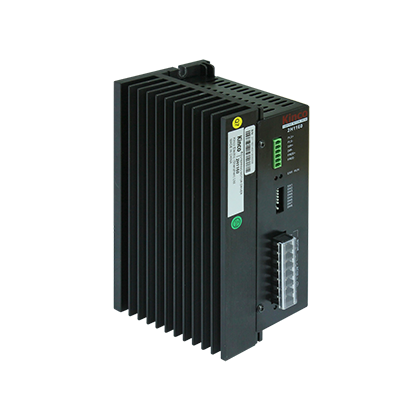

2H1160
Add comparison
Cancel comparison
Slide to display more
Basic Specifications
Fold up
Expand
Input voltage
Single-phase 77V AC~123VAC(50Hz)
Single-phase 220VAC~253VAC(50Hz)
Single-phase 220VAC~253VAC(50Hz)
DC12V~40V
Single-phase 60VAC~123VAC(50Hz)
Phase current(Peak)
4.5/5/5.5/6A/6.5/7/7.5/8,.Total of 8 setting values（unit：A）
4.5/5/5.5/6A/6.5/7/7.5/8，.Total of 8 setting values（unit：A）
2.8/3.213.6/4.0/4.4/4.8/5.215.6/6.0/6.4/6.8/
7.2/7.6/8.0.Total of 14 setting values（unit：A）
0.2~1.2A
2.5~6.5A
Micro step
2/4/5/8/10/16/20/32/50/64/100/128，Total of 12
2/4/5/8/10/16/20/32/50/64/100/128，Total of 12
400~30000pulse/rev，Total of 14
/
/
Adaptable motor
57/86/110 series 2-phase bipolarhybrid steppermotors
110/130 series 2-phase bipolarhybrid steppermotors
110/130 series 2-phase bipolarhybrid steppermotors
42 series 2-phase bipolarhybrid steppermotors
86/110 series 2-phase bipolarhybrid steppermotors
Input signal
PLS(CW)、DIR(CCW)、A/B、FREE signal; current range: 6~16 mA
PLS(CW)、DIR(CCW)、AVB、FREEsignal; current range: 6~16 mA
PLS(CW)、DIR(CCW)、AVB、FREEsignal; current range: 6~16 mA
The input circuit of the control signal is isolated by optocoupler devices,Input current of control signal 6~16mA
The input circuit of the control signal is isolated by optocoupler devices,Input current of control signal 6~16mA
Control mode
Pulse control:PLS+DIR,CW/CCW、A+B
Pulse control:PLS+DIR,CW/CCW、A+B
Pulse control:PLS+DIR,CW/CCW、A+B
/
/
Output signal
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
/
/
Automatic half current
The driver will reduce phase current of the
motor by a halfin 1.5 seconds
The driver will reduce phase current of the
motor by a halfin 1.5 seconds
The driver will reduce phase current of the
motor by a halfin 1.5 seconds
/
/
Protection circuit
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
/
/
Dynamic braking circuit
Absorb regenerated energy of motor by
connecting to power resistor. Custom function.
Absorb regenerated energy of motor by
connecting to power resistor. Custom function.
Absorb regenerated energy of motor by
connecting to power resistor. Custom function.
/
/
Cooling method
Forced air cooling
Forced air cooling
Forced air cooling
Natural air cooling
Natural air cooling
Weight (net weight)
1.5Kg
1.5Kg
1.5Kg
0.13Kg
1.77Kg
Dimensions
201x147x66mm
201x147x66mm
201x147x66mm
76*60*35.2
200*123*86.5
Ingress protection
IP20
IP20
IP20
IP20
IP20
Alarm Voltage Point
Fold up
Expand
Over-voltage protection
>187VDC
>395VDC
>395VDC
/
/
Under-voltage protection
<85VDC
<200VDC
<200VDC
/
/
Environment Of Use
Fold up
Expand
Operation environment
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Operation humidity
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
Operation temperature
0℃~+40℃
0℃℃~+40℃℃
0℃℃~+40℃℃
-10℃~+45℃
-10℃~+45°C
Storage temperature
-20℃~+70℃
-20℃~+70℃
-20℃~+70℃
-20℃~+70℃
-20℃~+70℃
