AK8X0 Series High-Performance Motion Controller
Blade-Type Design, Independently Developed Next-Generation Small to Medium-Sized Motion Controller
AK8X0 Series High-Performance Motion Controller

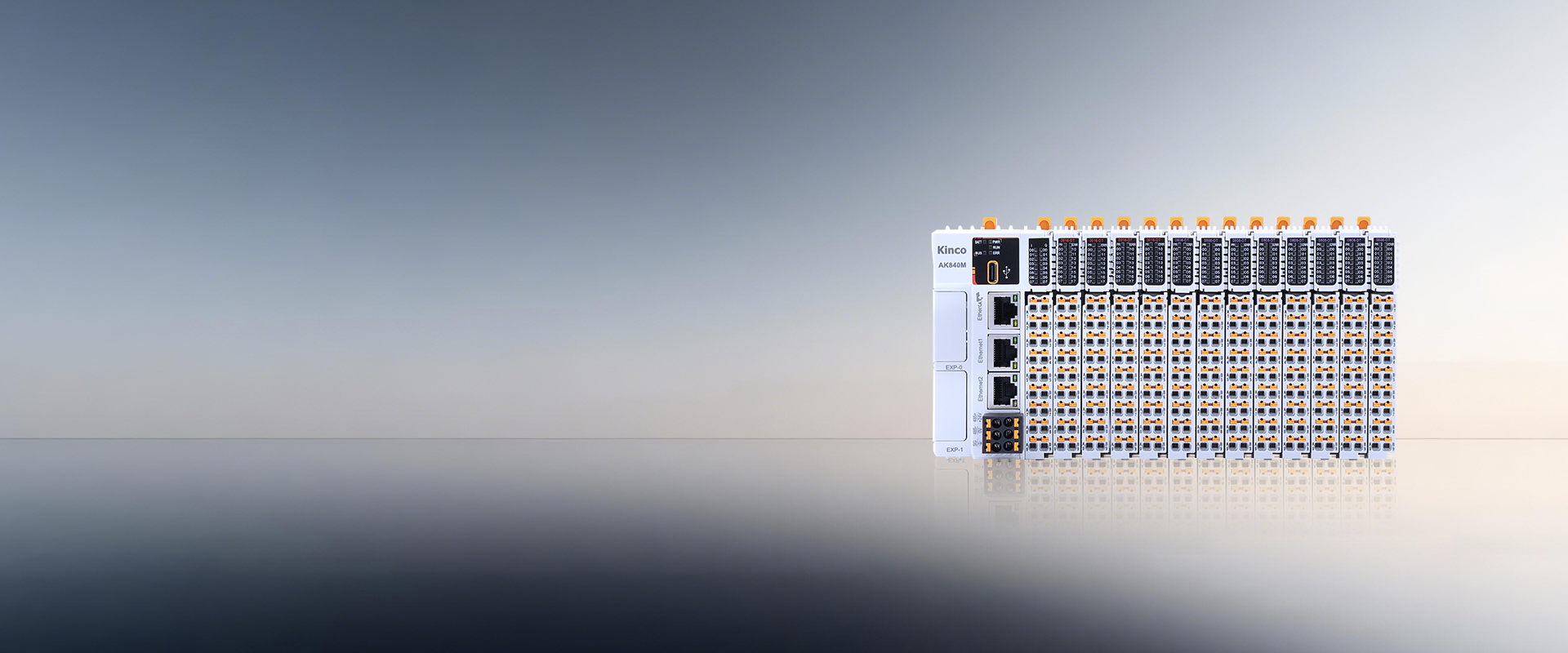

The AK8X0 Series is an independently developed next-generation small to medium-sized motion controller by Kinco, designed to meet diverse industrial control requirements. It integrates advanced features and performance, including EtherCAT bus motion control and a high-speed local backplane bus.
High-Performance Platform
Powerful Platform: Arm Cortex-A53 1.4 GHz quad-core processor for a significant performance leap.
High-Speed Backplane: LVDS 100 Mbps K-bus backplane expansion bus design supports up to 16 modules for fast response.
Ultra-Compact Design: 12 mm ultra-slim blade-type modules (16-pin), main unit width 54 mm.
Motion Control: Up to 32 axes EtherCAT synchronized motion control (1 ms sync cycle @ 8 axes, E-Cam).
Product Model

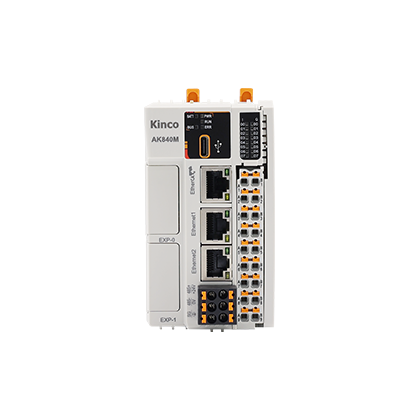

AK840M-0808DTN
Add comparison
Cancel comparison
AK840M-0808DTP
Add comparison
Cancel comparison
Slide to display more
Basic Specifications
Fold up
Expand
Program Memory
32MB
32MB
Data Memory
32MB
32MB
Power-off Storage
1MB
1MB
Ethernet
2*Ethernet
Both support TCP master/slave,with each channel supporting up to 31 TCP slaves.
Both support program upload and download.
2*Ethernet
Both support TCP master/slave,with each channel supporting up to 31 TCP slaves.
Both support program upload and download.
EtherCAT
1*EtherCAT
Minimum synchronization period 1ms,supports up to 32 axes
1*EtherCAT
Minimum synchronization period 1ms,supports up to 32 axes
RS485
1*RS485
supports Modbus RTU master/slave protocol
supports up to 31 Modbus RTU slaves
1*RS485
supports Modbus RTU master/slave protocol
supports up to 31 Modbus RTU slaves
USB OTG
1*USB OTG
Supports updating firmware using a USB drive (FAT32 format)
1*USB OTG
Supports updating firmware using a USB drive (FAT32 format)
Expansion Specifications
Kinco dedicated K-bus backplane bus

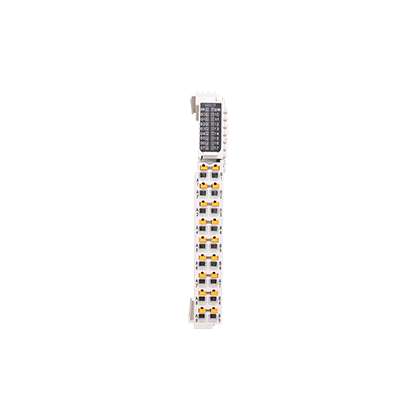

supports up to 16 RP20 series local expansion modules
Kinco dedicated K-bus backplane bus
supports up to 16 RP20 series local expansion modules
Motion Control
8~32 axes, 1~4ms
Supports motion control functions such as electronic gears,electronic cams,and interpolation
8~32 axes, 1~4ms
Supports motion control functions such as electronic gears,electronic cams,and interpolation
Indicator Light
PWR: Indicates power status
RUN: Indicates device operating status
ERR: Indicates device operating error
BUS: Indicates expansion bus error
BATT: Indicates backup battery low voltage
PWR: Indicates power status
RUN: Indicates device operating status
ERR: Indicates device operating error
BUS: Indicates expansion bus error
BATT: Indicates backup battery low voltage
EXP Expansion
2*EXP Slot
2*EXP Slot
Structural Specifications
Fold up
Expand
Installation Method
DIN35 Rail Installation
DIN35 Rail Installation
Dimensions (W*H*D)
57*180*80mm
57*180*80mm
Weight
≈180g
≈180g
Electrical Specifications
Fold up
Expand
Rated Input Voltage
DC 24V +/-20%（19.2V-28.8V）
DC 24V +/-20%（19.2V-28.8V）
Rated Input Power
6W（Unit power）/20W（Full load power）
6W（Unit power）/20W（Full load power）
Input Power Protection
Overcurrent protection
Reverse connection protection
Surge protection
Overcurrent protection
Reverse connection protection
Surge protection
Compatible Software
Fold up
Expand
Programming Software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Local I/O Specifications
Fold up
Expand
Number of Digital Input Channels
8 channels,supports NPN/PNP
8 channels,supports NPN/PNP
Number of Digital Output Channels
8 channels,supports NPN
8 channels,supports PNP
High-speed Counting Channel
Supports 2-channel high-speed counting
Supports 2-channel high-speed counting
High-speed Pulse Input Channel
Supports 2-channel high-speed pulse input
Supports A/B phase,pulse/direction,with a maximum pulse input of 200kHz
Supports 2-channel high-speed pulse input
Supports A/B phase,pulse/direction,with a maximum pulse input of 200kHz
Transportation and Storage
Fold up
Expand
Climatic Conditions
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Mechanical Conditions
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Operating Conditions
Fold up
Expand
Climatic Conditions
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Mechanical Conditions
Sine vibration: 5
Sine vibration: 5
Electromagnetic Compatibility(EMC)
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
Cooling Type
Natural air cooling
Natural air cooling
Product Protection
Fold up
Expand
Protection Level
IP20
IP20
Product Certification
Fold up
Expand
Certification
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
