Stepper Motor
The products cover two-phase 42~130/three-phase 57, 85 specifications mixed stepper motors.
Stepper Motor

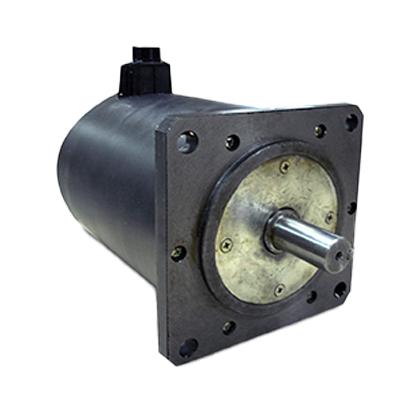

Kinco 2-phase and 3-phase hybrid stepper motors are made of high quality CRs (Cold Rolled Steel) and the rmostability permanent magnet. The flange size of 2-phase series ranges from 42mm to 130mm, the 3-phase series are of 57mm and 85mm. Kinco stepper motors feature low temperature rise, high reliability and stability. which make Kinco stepper motors suitable for different industries under different ambient conditions.

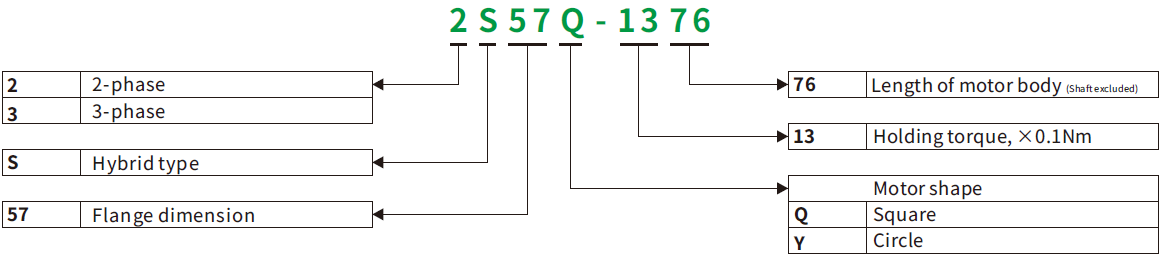

Product Model
2S42Q-0240
Add comparison
Cancel comparison
2S42Q-0348
Add comparison
Cancel comparison

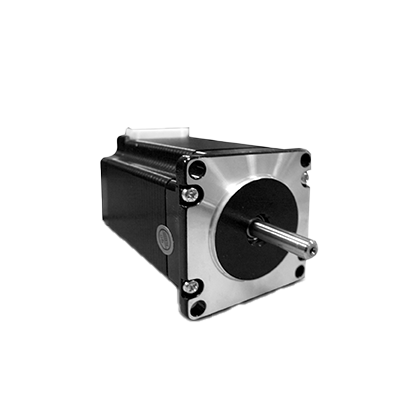

2S57Q-0541
Add comparison
Cancel comparison
2S57Q-0956
Add comparison
Cancel comparison
2S57Q-1376
Add comparison
Cancel comparison
2S57Q-2280
Add comparison
Cancel comparison
2S57Q-25B2
Add comparison
Cancel comparison

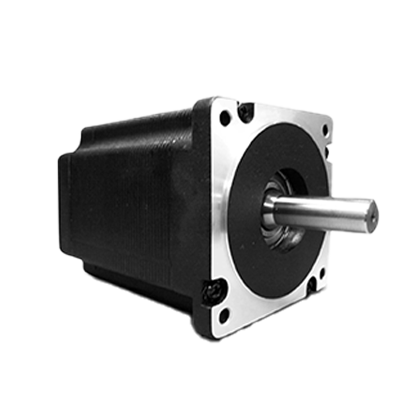

2S86Q-3465
Add comparison
Cancel comparison
2S86Q-4580
Add comparison
Cancel comparison
2S86Q-85B8
Add comparison
Cancel comparison
2S86Q-051F6
Add comparison
Cancel comparison

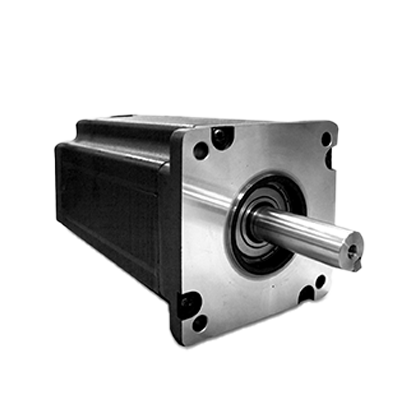

2S110Q-03999
Add comparison
Cancel comparison

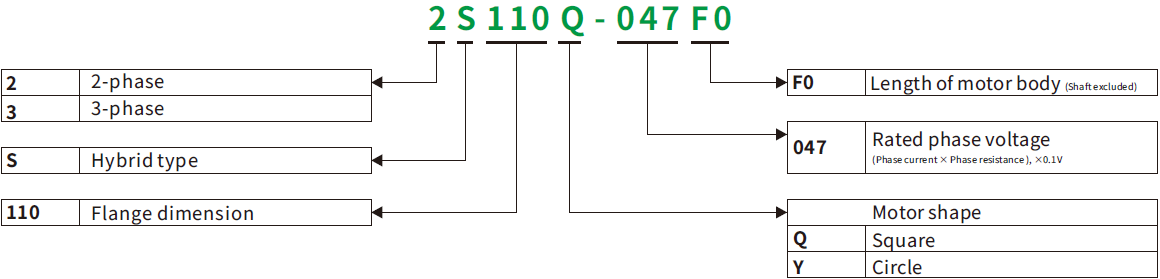

2S110Q-047F0
Add comparison
Cancel comparison
2S110Q-054K1
Add comparison
Cancel comparison
2S130Y-039M0
Add comparison
Cancel comparison
2S130Y-063R8
Add comparison
Cancel comparison
3S57Q-04056
Add comparison
Cancel comparison
3S57Q-04079
Add comparison
Cancel comparison

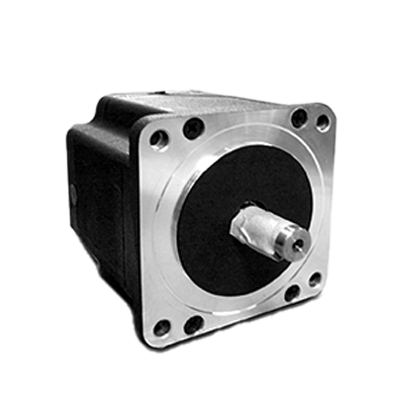

3S85Q-04097
Add comparison
Cancel comparison
3S85Q-040F7
Add comparison
Cancel comparison
Slide to display more
Basic Specifications
Fold up
Expand
Number of phases
Two-phases
Two-phases
Two-phases
Two-phases
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Flange

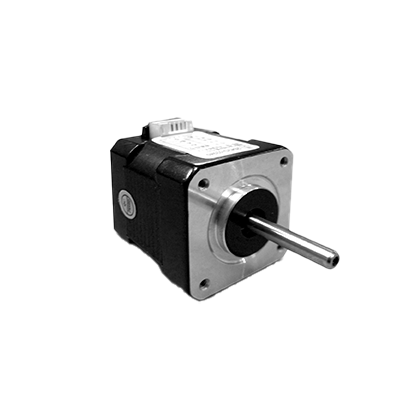

42
42

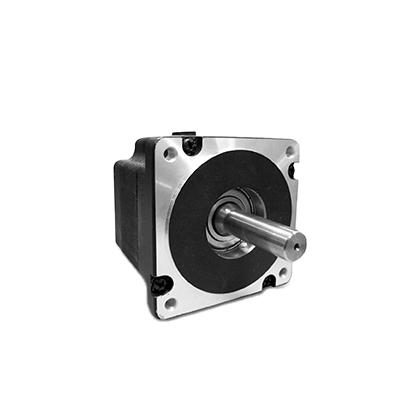

57
57
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Holding torque (N.m)
0.22
0.34
0.5
0.9
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Phase current_series connection(A)
0.4
0.7
0.7
1.96
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Phase current_parallel connection(A)
0.4
1.4
1.5
3.92
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Phase resistance(Ω)
12.5±10%
4.6±10%
3.6±10%
0.8±10%
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Phase inductance(mH)
21±20%
4±20%
4.1±20%
1.2±20%
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Inertia(kg.cm2)
0.054
0.068
0.135
0.3
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Number of leads
4
8
8
8
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Shalf diameter(mm)
5
5
6.35
6.35
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
shalf type
Without key
Without key
Platform
Platform
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Length(mm)
40
48
41
56
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Weight(kg)
0.28
0.36
0.45
0.7
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
Step angle(°)
1.8
1.8
1.8
1.8
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
