Construction Machinery Panels
工程机械屏 CZ6

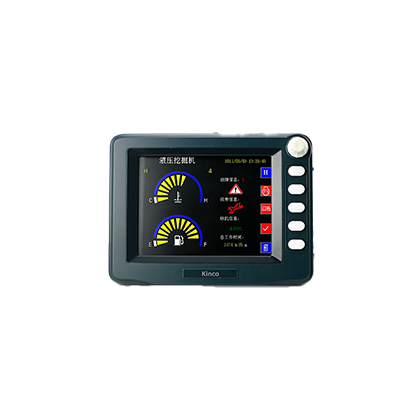

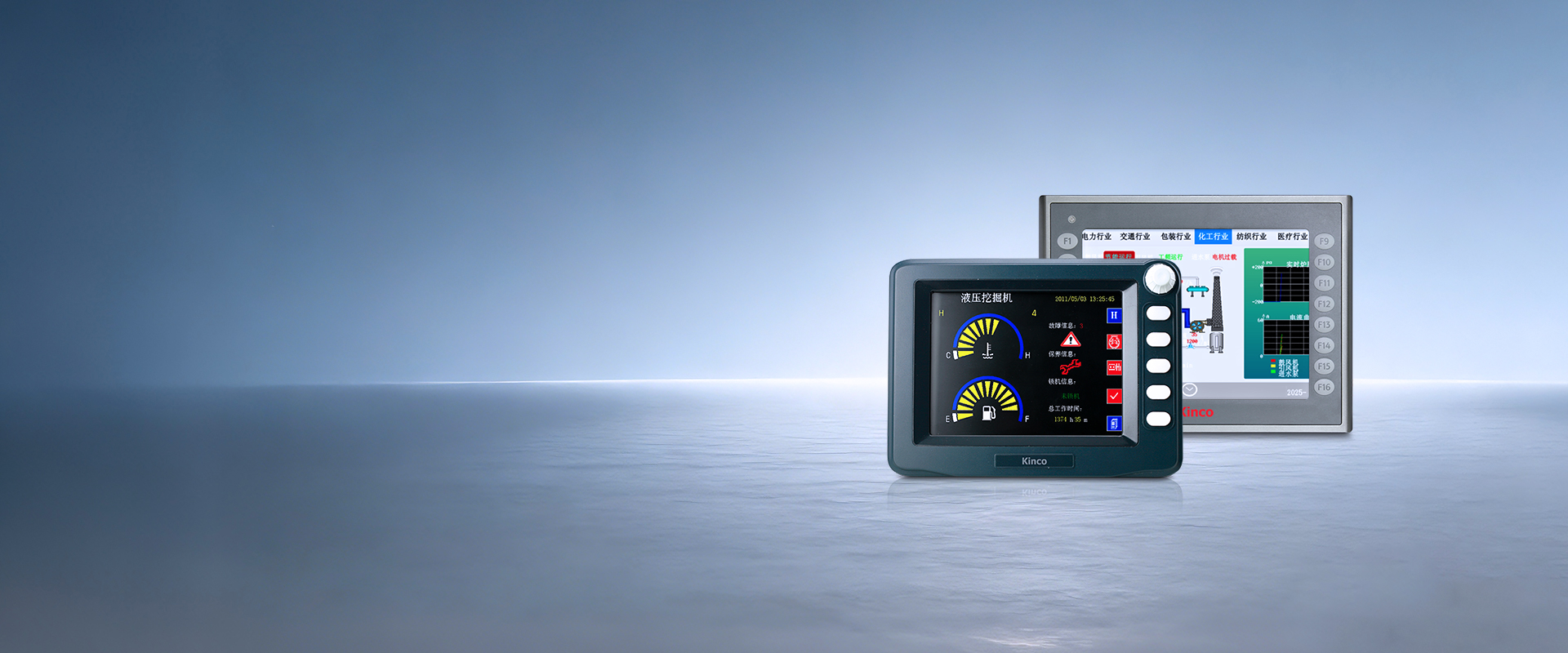

CZ6 is a 5.7-inch industrial-grade human-machine interface developed by Kinco specifically for construction machinery and vehicle-mounted applications. Designed for harsh outdoor and mobile working environments, it features IP65 overall protection, wide temperature adaptability, vibration and shock resistance, as well as dual isolation for power and serial ports.Equipped with an automotive-grade processor and military-spec encoder switches, and supporting CANopen, J1939 and other communication protocols dedicated to construction machinery, it provides stable and reliable human-machine interaction solutions for excavators, loaders, cranes and various other engineering machinery, ensuring long-term stable operation under severe working conditions.
Product Model
CZ6
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
5.7
Display Area (mm)
-
Resolution
640*480
Display Colors
65535
Viewing Angle
-
Contrast Ratio
-
Backlight
LED
Brightness (cd/m²)
700
Backlight Life
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire precision resistive network
Processor
Fold up
Expand
CPU
RISC Cortex-A8 800MHz
GPU
-
NPU
-
Memory
Fold up
Expand
RAM
256M
Flash Memory
256M
Interfaces
Fold up
Expand
USB Host
1
USB Slave
1
Ethernet
-
Communication Port
COM0:RS485;
COM2:RS232/CAN
4G
-
Wi-Fi
-
Audio Interface
-
Other Interfaces
1*Rotary knob
HDMI
-
RFID
-
Programmable Keys
5
Selector Switch
-
Emergenccy Stop
-
Grip Switch
-
LED Indicator
-
Electrical
Fold up
Expand
Input Power
DC9V-36V
Power Consumption
10W@24VDC
Allowable Power Loss Time
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
Voltage Endurance
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Dimensions (mm)
180x134x71(mm)
Panel Cut-out (mm)
171x 125(mm)
Mounting
Panel mounting &
Bracket mounting
Cable
-
Mounting Accessories
-
Environmental
Fold up
Expand
Operating Temperature
-20~70°C
Operating Humidity
10~90%RH (Non-condensing)
Storage Temperature
-30~80°C
Storage Humidity
10~90%RH (Non-condensing)
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling
Natural air cooling
Protection
Fold up
Expand
Power Isolation
-
Serial Port Isolation
-
PCB Coating
-
Degree of Protection
Whole unit: IP65
Certifications
Fold up
Expand
CE Certificate
-
UL Certificate
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Remote Maintenance Platform
-
