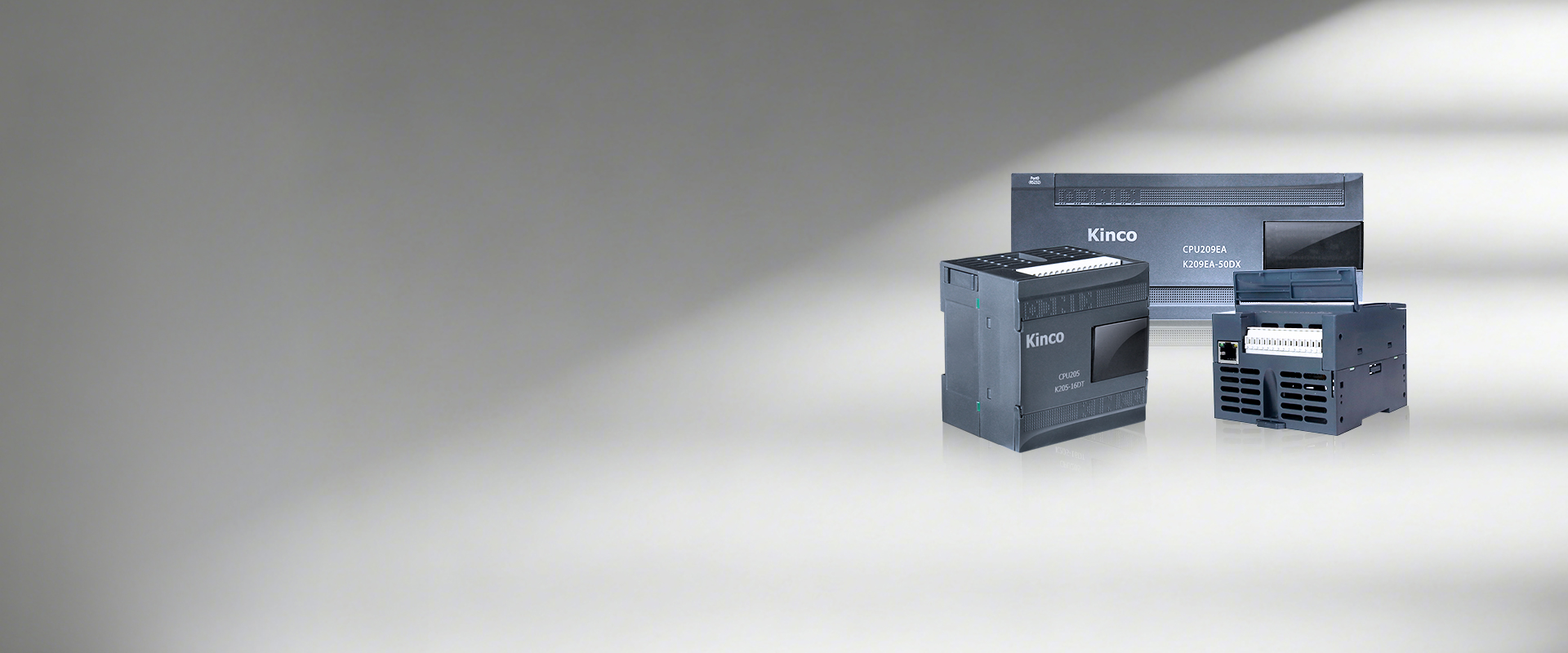

K2 Series Economy PLC
Product Model
K205-16DR
Add comparison
Cancel comparison
K205-16DT
Add comparison
Cancel comparison
K205EX-22DT
Add comparison
Cancel comparison
K205EA-18DT
Add comparison
Cancel comparison
K204ET-16DT
Add comparison
Cancel comparison
K209EA-50DX
Add comparison
Cancel comparison
K209M-56DT
Add comparison
Cancel comparison
Slide to display more
Basic Specifications
Fold up
Expand
Module Type
CPU
CPU
CPU
CPU
CPU
CPU
CPU
Program Memory
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 8k Instructions
Data Memory
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:4k Bytes;V Area:16k Bytes
Timer
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Timed interrupt
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
Counter
256 Units
256 Units
256 Units
256 Units
256 Units
256 Units
256 Units
Data Backup
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,Last 1k Bytes of V Area for Permanent Storage
Data retention
4k Bytes
Lithium Battery:3 Years at Room Temperature
4k Bytes
Lithium Battery:3 Years at Room Temperature
4k Bytes
Lithium Battery:3 Years at Room Temperature
4k Bytes
Lithium Battery:3 Years at Room Temperature
4k Bytes
Lithium Battery:3 Years at Room Temperature
4k Bytes
Lithium Battery:3 Years at Room Temperature
Entire V Area
Lithium Battery:3 Years at Room Temperature
RTC
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Programming port
USB 2.0, Micro USB Connector
USB 2.0, Micro USB Connector
USB 2.0, Micro USB Connector
USB 2.0, Micro USB Connector
USB 2.0, Micro USB Connector
USB 2.0, Micro USB Connector
USB 2.0, Micro USB Connector
Ethernet
/
/
/
/
1 Port
Supports Programming Protocol and Modbus TCP Server
/
/
CAN
/
/
/
/
/
/
2 Ports
CAN1:Supports Extended Protocol and CAN Free Protocol
CAN2:Supports CANopen Master,Kinco Motion Control Commands,MIoT Protocol and CAN Free Protocol
COM Port
PORT1:RS485,Supports Programming Protocol,Modbus RTU Slave and Free Protocol
PORT2:RS485,Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
PORT1:RS485,Supports Programming Protocol,Modbus RTU Slave and Free Protocol
PORT2:RS485,Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
PORT1:RS485,Supports Programming Protocol,Modbus RTU Slave and Free Protocol
PORT2:RS485,Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
PORT1:RS485,Supports Programming Protocol,Modbus RTU Slave and Free Protocol
PORT2:RS485,Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
PORT1:RS485e,Supports Programming Protocol,Modbus RTU Slave and Free Protocol
PORT2:RS485,Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
PORT0:RS232
PORT1:RS485,Supports Programming Protocol,Modbus RTU Slave and Free Protocol
PORT2:RS485,Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
PORT1:RS485, Supports Programming Protocol,Modbus RTU Master/Slave, Kinco PLC Interconnection Protocol,and Free Protocol Communication
PORT2:RS485, Supports Modbus RTU Master/Slave and Free Protocol Communication
Maximum Baud Rate: 115200 bps
Local Expansion Bus
Not Supported
Not Supported
Not Supported
Not Supported
Not Supported
Not Supported
Supports up to 14 KS Series Expansion Modules
Indicator Light
Run:Indicates the device is in running state
Stop:Indicates the device is in stopped state
Comm:Indicates communication status of any communication port
Err:Indicates device error state
When an input signal is present,the corresponding LED lights up(green)
When an output signal is present,the corresponding LED lights up(green)
Run:Indicates the device is in running state
Stop:Indicates the device is in stopped state
Comm:Indicates communication status of any communication port
Err:Indicates device error state
When an input signal is present,the corresponding LED lights up(green)
When an output signal is present,the corresponding LED lights up(green)
Run:Indicates the device is in running state
Stop:Indicates the device is in stopped state
Comm:Indicates communication status of any communication port
Err:Indicates device error state
When an input signal is present,the corresponding LED lights up(green)
When an output signal is present,the corresponding LED lights up(green)
Run:Indicates the device is in running state
Stop:Indicates the device is in stopped state
Comm:Indicates communication status of any communication port
Err:Indicates device error state
When an input signal is present,the corresponding LED lights up(green)
When an output signal is present,the corresponding LED lights up(green)
Run:Indicates the device is in running state
Stop:Indicates the device is in stopped state
Comm:Indicates communication status of any communication port
Err:Indicates device error state
When an input signal is present,the corresponding LED lights up(green)
When an output signal is present,the corresponding LED lights up(green)
Run:Indicates the device is in running state
Stop:Indicates the device is in stopped state
Comm:Indicates communication status of any communication port
Err:Indicates device error state
When an input signal is present,the corresponding LED lights up(green)
When an output signal is present,the corresponding LED lights up(green)
Run:Indicates the device is in running state
Stop:Indicates the device is in stopped state
Comm:Indicates communication status of any communication port
Err:Indicates device error state
When an input signal is present,the corresponding LED lights up(green)
When an output signal is present,the corresponding LED lights up(green)
Structural Specifications
Fold up
Expand
Installation Method
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
Dimensions (W*H*D)
90*97*70mm
90*97*70mm
90*97*70mm
90*97*70mm
90*97*70mm
215*90*70.36mm
215*90*70.36mm
Electrical Specifications
Fold up
Expand
Rated Input Voltage
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
Compatible Software
Fold up
Expand
Programming Software
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
Local I/O Specifications
Fold up
Expand
Digital Input Channels
6 channels,supports NPN/PNP
6 channels,supports NPN/PNP
8 channels,supports NPN/PNP
8 channels,supports NPN/PNP
8 channels,supports NPN/PNP
22 channels,supports NPN/PNP
32 channels,supports NPN/PNP
Digital Output Channels
6 Channels,Relay Type
6 Channels,Transistor-Type,supports PNP
8 Channels,Transistor-Type,supports PNP
8 Channels,Transistor-Type,supports PNP
8 Channels,Transistor-Type,supports PNP
8 Transistor-Type Channels(PNP)+12 Relay-Type Channels
24 Channels,Transistor-Type,supports PNP
Configurable Digital I/O Channels
4 Transistor-Type Channels,Configurable as Input or Output via Wiring,Mixable
4 Transistor-Type Channels,Configurable as Input or Output via Wiring,Mixable
6 Transistor-Type Channels,Configurable as Input or Output via Wiring,Mixable
/
/
/
/
Analog Input Channels
/
/
/
1 Channel
1 Channel
6 Channels
/
Analog Output Channels
/
/
/
1 Channel
1 Channel
2 Channels
/
HSC Channels
Supports 4 High-Speed Channels
Single-Phase:HSC0,HSC1:Max. Counting Frequency 50 kHz;
HSC2,HSC3:Max. Counting Frequency 20 kHz
Quadrature (Dual-Phase):HSC0,HSC1:Max. Counting Frequency 50 kHz;
HSC2,HSC3:Max. Counting Frequency 10 kHz
Supports 4 High-Speed Channels
Single-Phase:HSC0,HSC1:Max. Counting Frequency 50 kHz;
HSC2,HSC3:Max. Counting Frequency 20 kHz
Quadrature (Dual-Phase):HSC0,HSC1:Max. Counting Frequency 50 kHz;
HSC2,HSC3:Max. Counting Frequency 10 kHz
Supports 4 High-Speed Channels
Single-Phase:HSC0,HSC1:Max. Counting Frequency 50 kHz;
HSC2,HSC3:Max. Counting Frequency 20 kHz
Quadrature (Dual-Phase):HSC0,HSC1:Max. Counting Frequency 50 kHz;
HSC2,HSC3:Max. Counting Frequency 10 kHz
Supports 4 High-Speed Channels
Single-Phase:HSC0,HSC1:Max. Counting Frequency 50 kHz;
HSC2,HSC3:Max. Counting Frequency 20 kHz
Quadrature (Dual-Phase):HSC0,HSC1:Max. Counting Frequency 50 kHz;
HSC2,HSC3:Max. Counting Frequency 10 kHz
Supports 4 High-Speed Counters
Single-Phase:Maximum Counting Frequency 200 kHz
Dual-Phase:Maximum Counting Frequency 200 kHz
Supports 4 High-Speed Channels
Single-Phase:HSC0,HSC1:Max. Counting Frequency 200 kHz;
HSC2,HSC3:Max. Counting Frequency 20 kHz
Quadrature (Dual-Phase):HSC0,HSC1:Max. Counting Frequency 100 kHz;
HSC2,HSC3:Max. Counting Frequency 10 kHz
Supports 4 High-Speed Counters
Single-Phase:Maximum Counting Frequency 200 kHz
Dual-Phase:Maximum Counting Frequency 200 kHz
High-Speed Pulse Output Channels
/
3 Channels
All Support PTO and PWM Output Modes
Q0.0 and Q0.1:Maximum Output Frequency 50kHz
Q0.4:Maximum Output Frequency 10 kHz
(Load Resistance for Each Channel Must Not Exceed 3 kΩ)
3 Channels
All Support PTO and PWM Output Modes
Q0.0 and Q0.1:Maximum Output Frequency 50kHz
Q0.4:Maximum Output Frequency 10 kHz
(Load Resistance for Each Channel Must Not Exceed 3 kΩ)
3 Channels
All Support PTO and PWM Output Modes
Q0.0 and Q0.1:Maximum Output Frequency 50kHz
Q0.4:Maximum Output Frequency 10 kHz
(Load Resistance for Each Channel Must Not Exceed 3 kΩ)
3 Channels
All Support PTO and PWM Output Modes
All Support Maximum Input Frequency: 200 kHz
(Load Resistance for Each Channel Must Not Exceed 3 kΩ)
3 Channels
All Support PTO and PWM Output Modes
All Support Maximum Input Frequency: 200 kHz
(Load Resistance for Each Channel Must Not Exceed 3 kΩ)
3 Channels
All Support PTO and PWM Output Modes
Q0.0 and Q0.1:Maximum Input Frequency 200 kHz
Q0.4:Maximum Input Frequency 10 kHz
(Load Resistance for Each Channel Must Not Exceed 3 kΩ)
Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
Input Voltage
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
Input Current
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
Maximum Input Voltage for Logic "0"
5V，0.7mA
5V，0.7mA
5V，0.7mA
5V，0.7mA
5V，0.7mA
5V，0.7mA
5V，0.7mA
Minimum Input Voltage for Logic "1"
11V，2mA
11V，2mA
11V，2mA
11V，2mA
11V，2mA
11V，2mA
11V，2mA
Input Delay Time
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲
Isolation Method (Input)
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Output Voltage (Transistor Type)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
Output Current per Channel (Transistor Type)
Rated current:200mA@24V DC
Inrush current:1A,duration≤1s
Rated current:200mA@24V DC
Inrush current:1A,duration≤1s
Rated current:200mA@24V DC
Inrush current:1A,duration≤1s
Rated current:200mA@24V DC
Inrush current:1A,duration≤1s
Rated current:200mA@24V DC
Inrush current:1A,duration≤1s
Rated current:200mA@24V DC
Inrush current:1A,duration≤1s
Rated current:200mA@24V DC
Inrush current:1A,duration≤1s
Output Leakage Current (Transistor Type)
Maximum 0.5㎂
Maximum 0.5㎂
Maximum 0.5㎂
Maximum 0.5㎂
Maximum 0.5㎂
Maximum 0.5㎂
Maximum 0.5㎂
Output Impedance (Transistor Type)
Maximum 0.2Ω
Maximum 0.2Ω
Maximum 0.2Ω
Maximum 0.2Ω
Maximum 0.2Ω
Maximum 0.2Ω
Maximum 0.2Ω
Output Delay Time (Transistor Type)
Turn-on delay:Standard channels 15㎲
Turn-off delay:Standard channels 35㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 35㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 35㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 35㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 35㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 35㎲,high-speed channels 6㎲
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲
Turn-off delay:Standard channels 35㎲,high-speed channels 6㎲
Protection Functions (Transistor Output Type)
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Isolation Method (Transistor Output Type)
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Allowable Load Voltage (Relay Type)
DC 30V/AC 250V
/
/
/
/
DC 30V/AC 250V
/
Allowable Load Current (Relay Type)
1A（DC 30V/AC 250V）
/
/
/
/
1A（DC 30V/AC 250V）
/
Maximum Output Current per Group
5A
/
/
/
/
5A
/
Output Delay Time (Relay Type)
Turn-on delay≤10ms
Turn-off delay≤5ms
/
/
/
/
Turn-on delay≤10ms
Turn-off delay≤5ms
/
Expected Relay Contact Life
Mechanical Life (No Load):20,000,000 Operations(1,200 Operations/Min.)
Electrical Life (Rated Load):100,000 Operations(6 Operations/Min.)
/
/
/
/
Mechanical Life (No Load):20,000,000 Operations(1,200 Operations/Min.)
Electrical Life (Rated Load):100,000 Operations(6 Operations/Min.)
/
Output Isolation Characteristics (Relay Type)
Relay Isolation
Coil-to-Contact Isolation Voltage:2000 Vrms
/
/
/
/
Relay Isolation
Coil-to-Contact Isolation Voltage:2000 Vrms
/
Signal Type
/
/
/
4~mA、1~5V、0~20mA、 0~10V
4~mA、1~5V、0~20mA、 0~10V
4~mA、1~5V、0~20mA、 0~10V
/
Resolution
/
/
/
12 Bits
12 Bits
12 Bits
/
Measurement Accuracy
/
/
/
0.3% F.S.
0.3% F.S.
0.3% F.S.
/
Common Mode Voltage Rejection
/
/
/
(Signal Voltage+Common Mode Voltage)≤15V
(Signal Voltage+Common Mode Voltage)≤15V
(Signal Voltage+Common Mode Voltage)≤15V
/
Input Impedance
/
/
/
Current Mode:≤250Ω
Voltage Mode:>4MΩ
Current Mode:≤250Ω
Voltage Mode:>4MΩ
Current Mode:≤250Ω
Voltage Mode:>4MΩ
/
Analog Input Conversion Rate (per Channel)
/
/
/
≈200Times/s
≈200Times/s
≈200Times/s
/
Output Signal Accuracy
/
/
/
0.3% F.S.
0.3% F.S.
0.3% F.S.
/
Analog Output Conversion Rate (per Channel)
/
/
/
≈200Times/s
≈200Times/s
≈200Times/s
/
External Load
/
/
/
Current Mode:≤500Ω
Voltage Mode:>1kΩ
Current Mode:≤500Ω
Voltage Mode:>1kΩ
Current Mode:≤500Ω
Voltage Mode:>1kΩ
/
Transportation and Storage
Fold up
Expand
Climatic Conditions
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Mechanical Conditions
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Operating Conditions
Fold up
Expand
Climatic Conditions
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Mechanical Conditions
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Electromagnetic Compatibility(EMC)
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Product Protection
Fold up
Expand
Protection Level
IP20
IP20
IP20
IP20
IP20
IP20
IP20
Product Certification
Fold up
Expand
Certification
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
