RP20 Series Remote I/O Modules
Bus-Type Remote I/O System,Compatible with Bus Motion Controller》
RP20 Series Remote I/O Modules
To explore a wider range of automation application scenarios and provide customers with more comprehensive automation solutions,Kinco has launched the RP20 Series Remote I/O Modules. Designed to be compatible with the newly released AK8X0 Series Bus Motion Controllers,it adopts the same hardware design,enabling I/O module interface reuse and module mixing.
High Speed,Fast Response:LVDS+FPGA solution delivers 100 Mbps communication and μs-level I/O response.
Same Solution,Better Reusability:Coupler backplane uses same design as AK8X0 Series PLC backplane for I/O module interface reuse.
More Expansion,Higher Point Count:Single coupler supports up to 16 expansion modules,expandable to 256 I/O points.
Multi-Protocol,Enhanced Compatibility:Supports multiple industrial protocols (EtherCAT,CANopen,etc.)for easy integration into existing automation systems.
Product Model

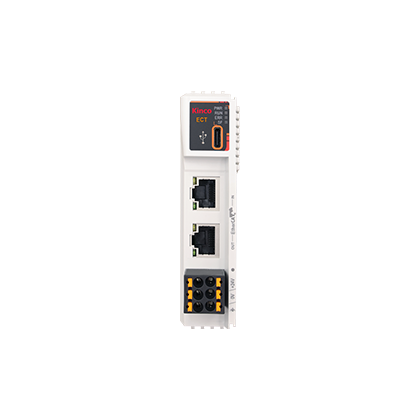

RP20C-ECT
Add comparison
Cancel comparison
RP20C-CAN
Add comparison
Cancel comparison
RP20-0016DTP
Add comparison
Cancel comparison
RP20-0016DTN
Add comparison
Cancel comparison

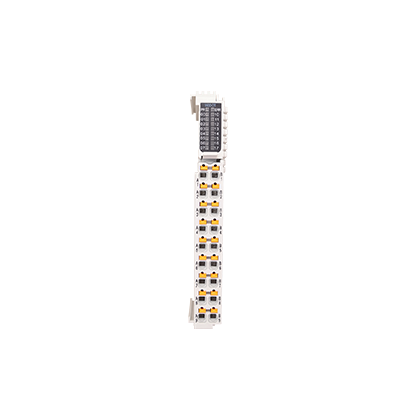

RP20-1600DT
Add comparison
Cancel comparison

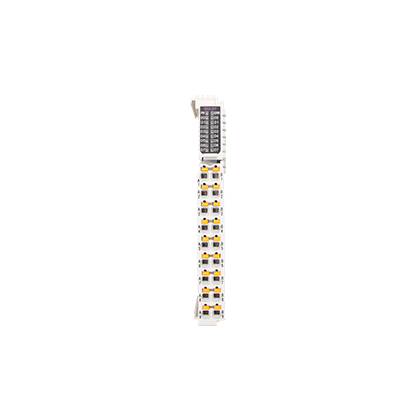

RP20-0808DTP
Add comparison
Cancel comparison

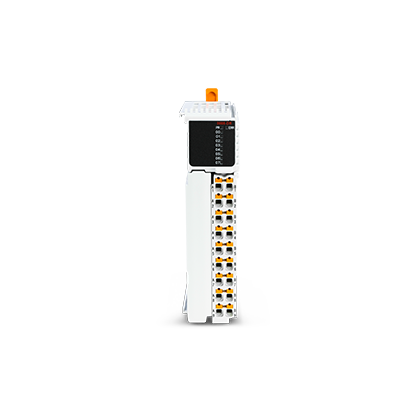

RP20-0008DR
Add comparison
Cancel comparison
RP20-0400TC
Add comparison
Cancel comparison

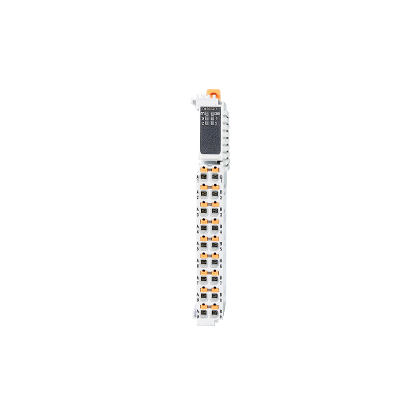

RP20-0400RD
Add comparison
Cancel comparison
RP20-0400IV
Add comparison
Cancel comparison
RP20-0004IV
Add comparison
Cancel comparison

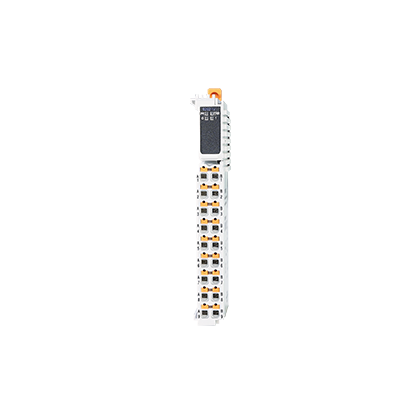

RP20-0202IV
Add comparison
Cancel comparison

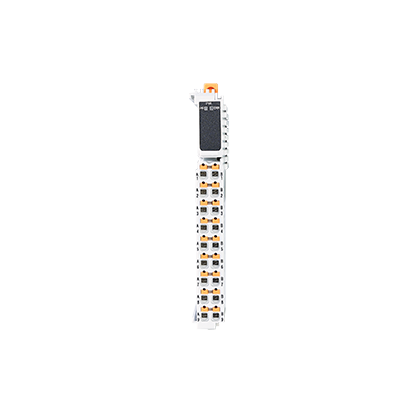

RP20-PW
Add comparison
Cancel comparison
Slide to display more
Basic Specifications
Fold up
Expand
Module Type
Coupler Type
Coupler Type
Digital Output Type
Digital Output Type
Digital Input Type
Mixed Digital I/O Type
Digital Output Type
Thermocouple Input Type
RTD Input Type
Analog Input Type
Analog Output Type
Mixed Analog I/O Type
Power Supply Module
Mechanical Life
/
/
/
/
/
/
2000W Times
/
/
/
/
/
/
Electrical Life
/
/
/
/
/
/
10W Times
/
/
/
/
/
/
Coupler Bus Protocol
EtherCAT
CANopen
/
/
/
/
/
/
/
/
/
/
/
Bus Interface
2*RJ45
2*RJ45
/
/
/
/
/
/
/
/
/
/
/
Bus Rate
100Mbps
Supports 1Mbps，500kbps，250kbps，125kbps
/
/
/
/
/
/
/
/
/
/
/
Maximum Distance Between Stations
100m
Maximum 40m at 1Mbps,Maximum 1000m at 125kbps
/
/
/
/
/
/
/
/
/
/
/
K-bus Expansion Bus Communication Rate
100Mbps
100Mbps
/
/
/
/
/
/
/
/
/
/
/
Update Method
DC-Sync Mode:Minimum Support 1ms
SM-Sync Mode
I/O Update:60㎲ with 16 Modules
/
/
/
/
/
/
/
/
/
/
/
Expansion Specifications
Supports Up to 16 RP20 Expansion Modules
Supports Up to 16 RP20 Expansion Modules
/
/
/
/
/
/
/
/
/
/
/
Indicator Light
PRW:Indicates Power Status
RUN:Indicates Expansion Bus Operating Status
ERR:Indicates EtherCAT Bus Error
SF:Indicates Expansion Bus Error
PRW:Indicates Power Status
RUN:Indicates Expansion Bus Operating Status
CAN:Indicates CAN Bus Communication Status
ERR:Indicates EtherCAT Bus Error
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Input Signal is Present,the Corresponding LED Lights Up (Green)
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
Red LED per Channel Indicates Input Value Exceeds Limit
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
Red LED per Channel Indicates Input Value Exceeds Limit
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
Red LED per Channel Indicates Input Value Exceeds Limit
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
Red LED per Channel Indicates Input Value Exceeds Limit
PR: Indicates Power Normal
ERR: Indicates Power Fault
Structural Specifications
Fold up
Expand
Installation Method
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
Dimensions (W*H*D)
24.3*100*80mm
24.3*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
Weight
≈120g
≈120g
≈70g
≈70g
≈70g
≈70g
≈70g
≈68g
≈68g
≈70g
≈70g
≈70g
≈70g
Electrical Specifications
Fold up
Expand
Rated Input Voltage
/
/
/
/
DC 24V
DC 24V
/
/
/
/
/
/
/
Rated Power
6W（Unit power）/20W（Full load power）
2.5W
/
/
/
/
/
/
/
/
/
/
12W
Maximum Input Power
/
20W(with Maximum Number of Expansion Modules)
/
/
/
/
/
/
/
/
/
/
/
Rated Input Current of Interface Power Supply
/
/
/
/
/
/
/
/
/
/
/
/
60mAA(Typical at 5V)
Rated Output Voltage of Bus Power Supply
DC 5V (DC 4.75V~DC 5.25V)
DC 5V (DC 4.75V~DC 5.25V)
/
/
/
/
/
/
/
/
/
/
DC 5V (DC 4.75V~DC 5.25V)
Rated Output Current of Bus Power Supply
2.0A(Typical at 5V)
2.0A(Typical at 5V)
/
/
/
/
/
/
/
/
/
/
2.0A(Typical at 5V)
Power Output Derating
Derate to 80% When Operating at 55℃(Output Current ≤1.6A)
Derate to 80% When Operating at 55℃(Output Current ≤1.6A)
/
/
/
/
/
/
/
/
/
/
Derate to 80% When Operating at 55℃(Output Current ≤1.6A)
Rated Output Voltage
/
/
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
/
DC24V(DC 20.4V~DC 28.8V)
AC 250V/DC 30V
/
/
/
/
/
/
Input Current
/
/
/
/
3.5mA@ DC 24V
3.5mA@ DC 24V
/
/
/
/
/
/
/
Output Leakage Current
/
/
Maximun 10㎂
Maximun 10㎂
/
Maximun 10㎂
/
/
/
/
/
/
/
Rated Input Voltage of Terminal Power Supply
/
/
/
/
/
/
DC 24V(DC 20.4V~DC 28.8V)
/
/
/
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
/
Rated Input Current of Terminal Power Supply
/
/
/
/
/
/
60mA（Typical at 24V）
/
/
/
100mA（Typical at 24V）
80mA（Typical at 24V）
/
Software Filter Time
/
/
/
/
Supports Configuration
Supports Configuration
/
/
/
/
/
/
/
Input Impedance
/
/
/
/
6.8k
6.8k
/
/
/
Current Mode:100Ω
Voltage Mode:50kΩ
/
Current Mode:100Ω
Voltage Mode:50kΩ
/
External Load
/
/
/
/
/
/
/
/
/
/
Current Mode:500Ω
Voltage Mode:1kΩ
Current Mode:500Ω
Voltage Mode:1kΩ
/
Input Limit
/
/
/
/
/
/
/
/
/
Current:±30mA,Voltage:±15V
/
/
/
Output Load
/
/
Resistive Load:12A/Point,48W/Module
Inductive Load:6W/Point,24W/Module
Lamp Load:5W/Point,20W/Module
Resistive Load:12A/Point,48W/Module
Inductive Load:6W/Point,24W/Module
Lamp Load:5W/Point,20W/Module
/
Resistive Load:12A/Point,48W/Module
Inductive Load:6W/Point,24W/Module
Lamp Load:5W/Point,20W/Module
Resistive Load:2A/Point,8A/Module
Inductive Load:1A/Point,4A/Module
Lamp Load:1.25A/Point,5A/Module
/
/
/
/
/
/
ignal Limit
/
/
/
/
/
/
/
/
/
/
/
Current Input ≤24mA,Voltage Input ≤12V
/
Maximum Switching Frequency
/
/
100 Hz,Resistive Load
100 Hz,Resistive Load
/
100 Hz,Resistive Load
20 Times/min
/
/
/
/
/
/
Hot Swap
/
/
Not Supported
Not Supported
Not Supported
Not Supported
Not Supported
/
/
Not Supported
Not Supported
Not Supported
/
K-bus Current Consumption
/
/
135mA(DC 5V,Room Temperature)
135mA(DC 5V,Room Temperature)
135mA(DC 5V,Room Temperature)
135mA(DC 5V,Room Temperature)
135mA(DC 5V,Room Temperature)
160mA(DC 5V,Room Temperature)
160mA(DC 5V,Room Temperature)
150mA(DC 5V,Room Temperature)
140mA(DC 5V,Room Temperature)
150mA(DC 5V,Room Temperature)
/
Isolation
/
/
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
Protection Functions
Overcurrent Protection
Reverse Polarity Protection
Surge Protection
Overcurrent Protection
Reverse Polarity Protection
Surge Protection
Overcurrent Protection
Surge Protection
Overcurrent Protection
Surge Protection
/
Overcurrent Protection
Surge Protection
Overcurrent Protection
Surge Protection
/
/
/
/
/
Overcurrent Protection
Reverse Polarity Protection
Surge Protection
Compatible Software
Fold up
Expand
Programming Software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Local I/O Specifications
Fold up
Expand
Digital Input Channels
/
/
/
/
16 channels,supports NPN/PNP
8 channels,supports PNP
/
/
/
/
/
/
/
Digital Output Channels
/
/
16 Channels,Transistor-Type,supports PNP
16 Channels,Transistor-Type,supports NPN
/
8 channels,supports PNP
8 Channels,Relay Type,Dry Contact,Normally Open Contact
/
/
/
/
/
/
Turn-on Delay
/
/
＜50㎲
＜50㎲
＜50㎲
＜50㎲
＜50㎲
/
/
/
/
/
/
Turn-off Delay
/
/
＜50㎲
＜50㎲
＜50㎲
＜50㎲
＜50㎲
/
/
/
/
/
/
Logic “0” Signal Level
/
/
MOSFET Off
MOSFET Off
/
MOSFET Off
Relay Off
/
/
/
/
/
/
Logic “1” Signal Level
/
/
MOSFET On
MOSFET On
/
MOSFET On
Relay On
/
/
/
/
/
/
Maximum Input Voltage for Logic "0"
/
/
/
/
5V，0.8mA
5V，0.8mA
/
/
/
/
/
/
/
Minimum Input Voltage for Logic "1"
/
/
/
/
15V，2mA
15V，2mA
/
/
/
/
/
/
/
On-Resistance
/
/
Typical:0.15Ω,Maximum:0.3Ω
Typical:0.26Ω,Maximum:0.56Ω
/
Typical:0.15Ω,Maximum:0.3Ω
Typical:0.15Ω,Maximum:0.3Ω
/
/
/
/
/
/
Analog Input Channels
/
/
/
/
/
/
/
4 Channels
4 Channels
4 Channels
/
2 Channels
/
Analog Output Channels
/
/
/
/
/
/
/
/
/
/
4 Channels
2 Channels
/
Resolution
/
/
/
/
/
/
/
24 Bits
24 Bits
16 Bits
16 Bits
12 Bits
/
Sensor Type
/
/
/
/
/
/
/
Type J,Type K,Type E,Type S,Type T,mV Signal
Pt100、Pt1000、Cu50、Cu100
/
/
/
/
Signal Type
/
/
/
/
/
/
/
/
/
4~20mA、-20~20mA、1~5V、-10~10V
4~20mA、-20~20mA、1~5V、-10~10V
4~20mA、-20~20mA、1~5V、-10~10V
/
Connection Method
/
/
/
/
/
/
/
2-Wire
2-Wire,3-Wire
2-Wire,3-Wire
/
/
/
Temperature Resolution
/
/
/
/
/
/
/
0.1℃
0.1℃
0.1℃
/
/
/
Cold Junction Compensation
/
/
/
/
/
/
/
Internal Compensation, External Compensation
/
/
/
/
/
Measurement Accuracy
/
/
/
/
/
/
/
±0.2% F.S
±0.2% F.S
±0.2% F.S
±0.2% F.S
±0.3% F.S
/
Conversion Rate (per Channel)
/
/
/
/
/
/
/
≈1 Time/s
≈1 Time/s
50 Time/s
50 Time/s
15 Time/s
/
Filter Method
/
/
/
/
/
/
/
No Filter / Averaging Filter
No Filter / Averaging Filter
No Filter / Averaging Filter
/
/
/
Channel Diagnostics
/
/
/
/
/
/
/
Over-Limit Alarm,Wire Break Alarm
Over-Limit Alarm,Wire Break Alarm
Wire Break Alarm(Supported Only in 1-5V and 4-20mA Modes)
/
Wire Break Alarm(Supported Only in 1-5V and 4-20mA Modes)
/
HSC Channels
/
/
/
/
/
/
/
/
/
/
/
/
/
High-Speed Pulse Output Channels
/
/
/
/
/
/
/
/
/
/
/
/
/
Transportation and Storage
Fold up
Expand
Climatic Conditions
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Mechanical Conditions
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Operating Conditions
Fold up
Expand
Climatic Conditions
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Mechanical Conditions
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Electromagnetic Compatibility(EMC)
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
Cooling Type
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Product Protection
Fold up
Expand
Protection Level
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
Product Certification
Fold up
Expand
Certification
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
