Green Series - Standard Type (G1)
A new generation of industrial human-machine interface

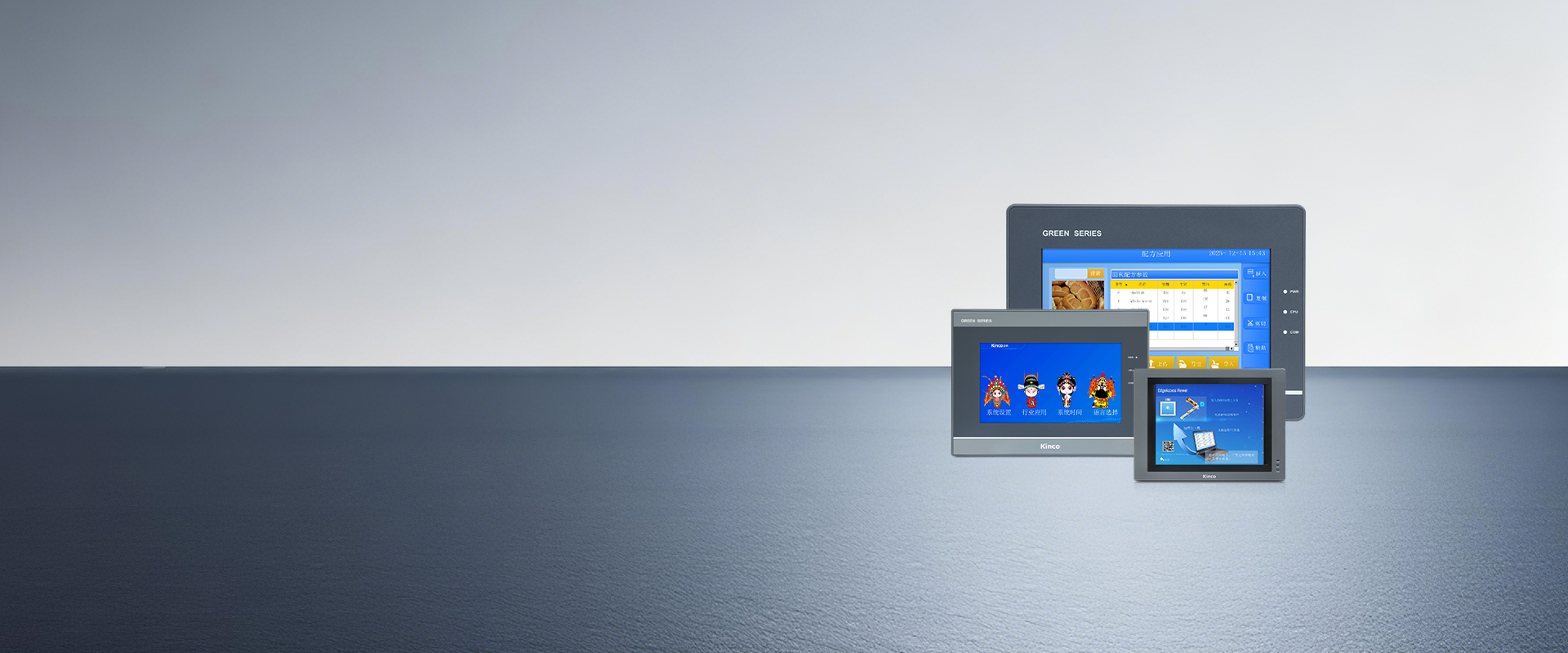

GREEN Series Standard HMI
The Green Series Standard (G1 Series) is a cost-effective industrial-grade human-machine interface launched by Kinco.Equipped with an industrial processor, it is designed for general industrial environments and universal automation applications, featuring built-in isolated power supply, front panel IP65 protection, and rich communication interfaces. It is available in multiple screen sizes including 7-inch, 10.1-inch, and 12.1-inch (G070/G070E/G070E-CAN/G100E/G121E), suitable for various automation scenarios such as logistics equipment, packaging machinery, food processing, medical equipment, and environmental protection equipment. It provides users with stable, economical and efficient human-machine interaction solutions to meet the control and monitoring requirements of small and medium-sized automation equipment.
Product Model

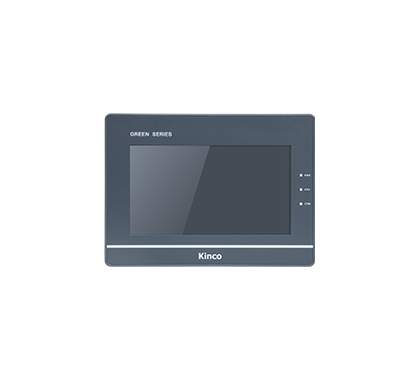

G070/G070（UL）
Add comparison
Cancel comparison
G070E/G070E(UL)
Add comparison
Cancel comparison
G070E-CAN
Add comparison
Cancel comparison

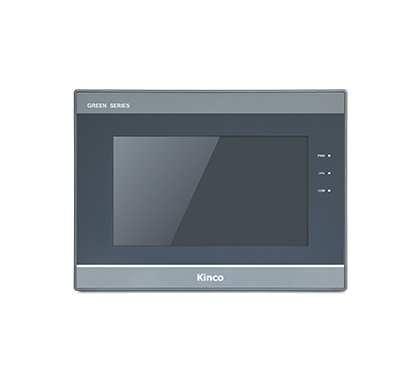

G100
Add comparison
Cancel comparison
G100E
Add comparison
Cancel comparison

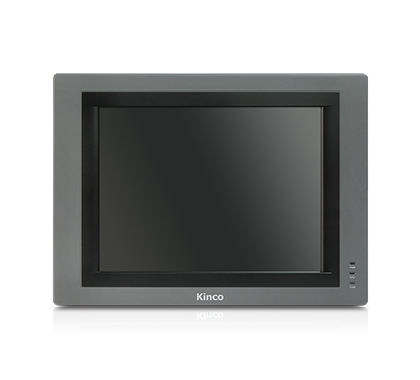

G121E
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
7
7
7
10.1
10.1
12.1
Display Area (mm)
154.08(H)×85.92(V)
154.08(H)×85.92(V)
154.08(H)×85.92(V)
222.72(H)×125.28(V)
222.72(H)×125.28(V)
246(H)×184.5(V)
Resolution
800*480
800*480
800*480
1024*600
1024*600
800*600
Display Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
Viewing Angle
70/70/60/70 (L/R/U/D)
70/70/60/70 (L/R/U/D)
70/70/60/70 (L/R/U/D)
70/70/60/70 (L/R/U/D)
70/70/60/70 (L/R/U/D)
80/80/65/75 (L/R/U/D)
Contrast Ratio
500:1
500:1
500:1
500:1
500:1
800:1
Backlight
LED
LED
LED
LED
LED
LED
Brightness (cd/m²)
400
400
400
350
350
400
Backlight Life
>30000 hours
>30000 hours
>30000 hours
50000 hours
50000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
4-wire precision resistive network
Processor
Fold up
Expand
CPU
ARM RISC32Bit 800MHz
ARM RISC32Bit 800MHz
ARM RISC32Bit 800MHz
ARM RISC32Bit 800MHz
ARM RISC32Bit 800MHz
ARM RISC32Bit 800MHz
GPU
-
-
-
-
-
-
NPU
-
-
-
-
-
-
Memory
Fold up
Expand
RAM
128M
128M
128M
128M
128M
128M
Flash Memory
256M
256M
256M
256M
256M
256M
Interfaces
Fold up
Expand
USB Host
1
1
1
1
1
1
USB Slave
1
1
1
1
1
1
Ethernet
-
1
1
-
1
1
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232
4G
-
-
-
-
-
-
Wi-Fi
-
-
-
-
-
-
Audio Interface
-
-
-
-
-
-
Other Interfaces
-
-
1*CANopen
-
-
-
HDMI
-
-
-
-
-
-
RFID
-
-
-
-
-
-
Programmable Keys
-
-
-
-
-
-
Selector Switch
-
-
-
-
-
-
Emergenccy Stop
-
-
-
-
-
-
Grip Switch
-
-
-
-
-
-
LED Indicator
-
-
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC12V-28V
DC12V-28V
DC12V-28V
DC12V-28V
DC12V-28V
DC12V-28V
Power Consumption
3.8W@24VDC
3.8W@24VDC
3.8W@24VDC
6W@24VDC
6W@24VDC
10.8W@24VDC
Allowable Power Loss Time
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Voltage Endurance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Dimensions (mm)
204x150x37(mm)
204x150x37(mm)
204x150x37(mm)
310x230x55(mm)
310x230x55(mm)
350x260x54(mm)
Panel Cut-out (mm)
192x 138(mm)
192x 138(mm)
192x 138(mm)
299x 219(mm)
299x 219(mm)
339x 249(mm)
Mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Cable
-
-
-
-
-
-
Mounting Accessories
-
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
-10~55°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Protection
Fold up
Expand
Power Isolation
Yes
Yes
Yes
Yes
Yes
Yes
Serial Port Isolation
-
-
-
-
-
-
PCB Coating
Yes
Yes
Yes
Yes
Yes
Yes
Degree of Protection
IP65
IP65
IP65
IP65
IP65
IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
UL Certificate
-
-
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Remote Maintenance Platform
-
EdgeAccess1.0
EdgeAccess1.0
-
EdgeAccess1.0
EdgeAccess1.0
