AK810M New Generation Flat-Type Motion Controller
Designed for Space, Efficiency, and Openness
AK810M New Generation Flat-Type Motion Controller
Quad-Core Powerful Computing, 32-Axis EtherCAT Synchronization, Slim and Compact for Easy Expansion, General-Purpose Industrial Control.
Product Model

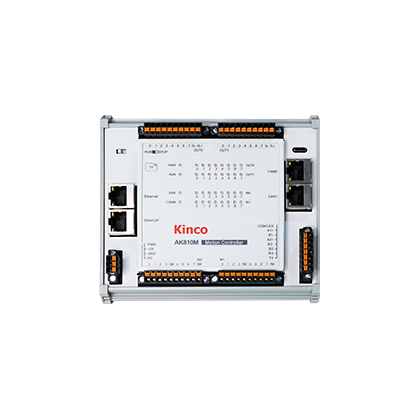

AK810M-1616DTP
Add comparison
Cancel comparison
Slide to display more
Basic Specifications
Fold up
Expand
Program Memory
32MB
Data Memory
32MB
Power-off Storage
1MB
SD Card/USB
1*MicroSD卡,1*USB HOST(Type-C)
CAN
2*CANopen
Independent isolated interface,each channel supports 16 CANopen slaves
Ethernet
1*Ethernet
Supports TCP/UDP,with a maximum transmission rate of 100M/s
Supports master/slave station,with up to 31 TCP slave stations
Supports program upload and download
EtherCAT
1*EtherCAT，supports COE
Supports up to 16 axes
RS485
2*RS485
Supports Modbus RTU master/slave protocol
Supports up to 31 Modbus RTU slaves
RS232
1*RS232
Supports Modbus RTU master/slave protocol
Supports up to 31 Modbus RTU slaves
USB OTG
1*USB OTG
Supports updating firmware using a USB drive(FAT32 format)
Motion Control
16 axis EtherCAT motion control
Supports motion control functions such as electronic gears,electronic cams and interpolation
Indicator Light
POW:Indicates the power status
RUN:Indicates the device operating status
ERR Indicates device operating errors
COMM:Indicates the serial communication status
Structural Specifications
Fold up
Expand
Installation Method
DIN35 Rail Installation
Dimensions (W*H*D)
139.5*125*52.4mm（Including terminal height）
Weight
≈180g
Electrical Specifications
Fold up
Expand
Rated Input Voltage
DC 24V +/-20%（19.2V-28.8V）
Rated Input Power
6W（Unit power）
Power Isolation
Yes
Input Power Protection
Overcurrent protection
Reverse connection protection
Surge protection
Compatible Software
Fold up
Expand
Programming Software
Supports IEC61131-3 standard CoDeSys programming software
Local I/O Specifications
Fold up
Expand
Digital Input Channels
16 channels,supports NPN/PNP
Digital Output Channels
16 channels,supports PNP
HSC Channels
Supports 2-channel high-speed counting
High-speed Pulse Input Channel
Supports 2-channel of high-speed pulse input
Supports A/B phase,pulse/direction,with a maximum pulse input of 200kHz
Transportation and Storage
Fold up
Expand
Climatic Conditions
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Mechanical Conditions
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Operating Conditions
Fold up
Expand
Climatic Conditions
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Mechanical Conditions
Sine vibration: 5
Electromagnetic Compatibility(EMC)
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
Cooling Type
Natural air cooling
Product Protection
Fold up
Expand
Protection Level
IP20
Product Certification
Fold up
Expand
Certification
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
