Industrial WEB Panels
15.6-inch high-definition capacitive touch screen octa-core powerfulindustrial terminal, built exclusively for self-developed WEB browser
Future Series II Enhanced Capacitive Touch Screen
Kinco's new-generation Web Series industrial touch panels focus on "Halved Deployment & Simplified Maintenance". Featuring native Web technology, they support plugin-free cross-platform access. With an octa-core processor and HD capacitive touch screen, they enable smooth 3D rendering and multi-touch gestures, boosting interaction efficiency and deployment ease for industrial visualization. Ideal for digital twin and robotics integration, they help users achieve lightweight digital transformation.
15.6-inch HD capacitive touch screen with 16.77 million true colors.
Octa-core processor up to 2.2GHz with built-in GPU and NPU, supporting 3D complex scenes.
Equipped with 3 serial ports, dual Ethernet ports, metal body, three-proof design and power isolation.
Built-in browser supports 3D display, virtual keyboard, full screen and gesture operation.
Supports security certificate import, multi-server preset and custom boot screen.
Product Model

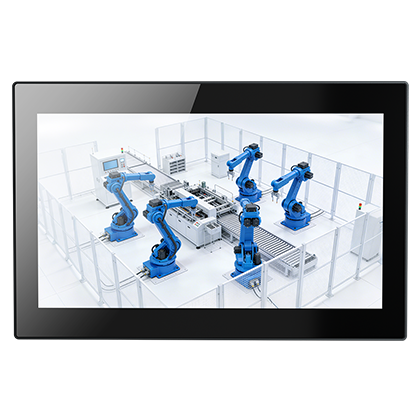

IWP156 Ultra
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
15.6
Display Area (mm)
344.16(W)x193.59(H)
Resolution
1920*1080
Display Colors
16.7 million
Viewing Angle
89/89/89/89(L/R/U/D)
Contrast Ratio
1000:1
Backlight
LED
Brightness (cd/m²)
300
Backlight Life
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
Capacitive Glass Touch Screen
Processor
Fold up
Expand
CPU
Octa-core (Quad-core Cortex-A72 + Quad-core Cortex-A53) with a maximum frequency of 2.2 GHz
GPU
ARM G52 MC3
NPU
6TOPS
Memory
Fold up
Expand
RAM
4GB
Flash Memory
32GB
Interfaces
Fold up
Expand
USB Host
1
USB Slave
1
Ethernet
2
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
4G
-
Wi-Fi
-
Audio Interface
-
Other Interfaces
-
HDMI
-
RFID
-
Programmable Keys
-
Selector Switch
-
Emergenccy Stop
-
Grip Switch
-
LED Indicator
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
Power Consumption
15W@24VDC
Allowable Power Loss Time
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
Voltage Endurance
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Metal
Dimensions (mm)
395x259x25.5(mm)
Panel Cut-out (mm)
382x246mm
Mounting
Panel mounting & Bracket mounting (100*100)
Cable
-
Mounting Accessories
-
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
Operating Humidity
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling
Natural air cooling
Protection
Fold up
Expand
Power Isolation
Yes
Serial Port Isolation
-
PCB Coating
Yes
Degree of Protection
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
Software
Fold up
Expand
Configuration Software
WEB
Remote Maintenance Platform
-
